SparkPNT GNSS Flex Module - mosaic-X5

SKU: GPS-28138 Brand: Sparkfun

SparkPNT GNSS Flex Modules are plug-in boards featuring different GNSS receivers. They are designed to be easily swapped for repairs and pin-compatible...

Special Price $931.15 AUD, inc GST

Regular Price $1,108.51 AUD, inc GST

$846.50 AUD, exc GST

Special pricing ends 14 September 2025

* this special may end earlier than shown

Available with a lead time
Expect dispatch between Jun 25 and Jun 30

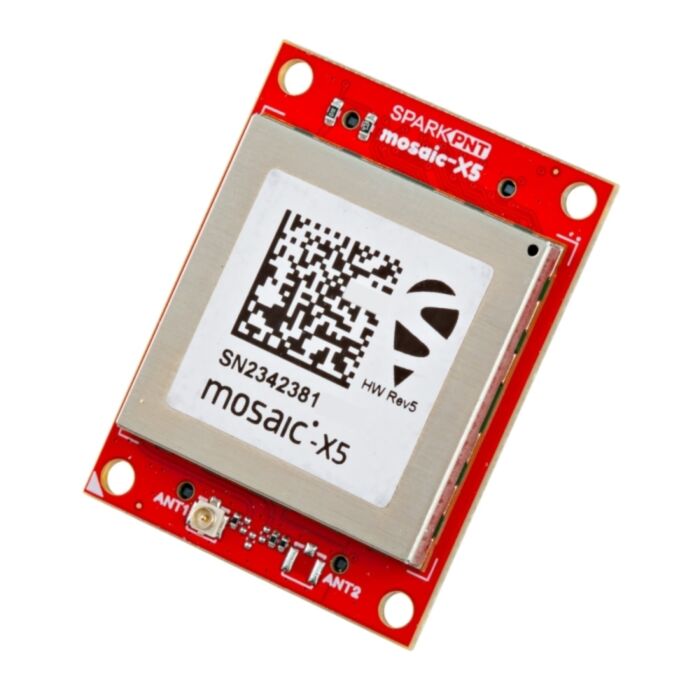

SparkPNT GNSS Flex Modules are plug-in boards featuring different GNSS receivers. They are designed to be easily swapped for repairs and pin-compatible for upgrades. The boards have two 2x10-pin, 2mm pitch female headers connecting to carrier boards. Using a standardized pinout for the mosaic-X5 GNSS receiver, these pins break out the USB, UART (x4), and SD card interfaces and the PPS or event signals.

This SparkPNT GNSS Flex Module features the Septentrio mosaic-X5, a compact, ultra-low power, multi-band, multi-constellation, high-precision GNSS receiver. The receiver supports the GPS (USA), GLONASS (Russia), Beidou (China), Galileo (Europe), and NavIC (India) constellations, including regional systems (i.e., SBAS and QZSS). With its Real Time Kinematics (RTK) capabilities, the module can achieve a horizontal accuracy of 6mm (~0.25in), vertical accuracy of 1cm (~0.4in) using RTK, and timing precision of 5ns (5 billionths of a second). It also features Septentrio's unique AIM+ technology for interference mitigation and anti-spoofing, ensuring best-in-class reliability and scalable position accuracy.

The mosaic-X5 is a sophisticated module with an internal web server that can be utilized with any web browser. On the GNSS Flex module, the web server is accessed through either the USB data pins from the standard GNSS Flex headers or the Ethernet PHY of the mosaic-X5, which is broken out on a third 2x10-pin 2mm pitch female header.

For the users who prefer a command-line interface, Septentrio has you covered. Users can still control and configure the mosaic-X5 module through a CLI, which is helpful for scenarios such as production line testing (in fact, that is how Sparkfun test this board) or remote access.

Features & Specs

mosaic-X5 GNSS Flex Module:

Septentrio mosaic-X5 GNSS Receiver
- GNSS Constellations:
  - GPS (USA)
  - GLONASS (Russia)
  - Galileo (EU)
  - BDS (China)
  - QZSS (Japan)
  - NavIC (India)
- SBAS Systems:
  - WASS (USA)
  - SDCM (Russia)
  - EGNOS (EU)
  - MSAS (Japan)
  - GAGAN (India)
Three 2x20-pin, 2mm-pitch female headers
- 40-pin socket for GNSS Flex system
  - Power
    - USB
    - 3.3V
    - Backup power
  - USB data
  - UART (x4)
  - SD card
  - I²C bus
  - PPS signal (x2)
  - LED indicators (x2)
  - Event indicators (x2)
- 20-pin socket for mosaic-X5 Ethernet PHY
U.FL Connector:
- GNSS Antenna (Active, Multi-band)

mosaic-X5 GNSS Receiver:

Voltage Range: 3.135 to 3.465V
- Max current: 500mA
RTK Accuracy
- Horizontal: 0.6cm(±0.5ppm)
- Vertical: 1cm (±1ppm)
Channels: 448 (simultaneous tracking)
GNSS Frequency Bands:
- GPS: L1C/A, L1PY, L2C, L2P, L5
- GLONASS: L1CA, L2CA, L2P, L3 CDMA
- Beidou: B1I, B1C, B2a, B2b, B2I, B3
- Galileo: E1, E5a, E5b, E5 AltBoc, E6
- QZSS: L1C/A, L1 C/B, L2C, L5
- NavIC: L5
- SBAS: Egnos, WAAS, GAGAN, MSAS, SDCM (L1, L5)
- L-band
Time to Fix
- Cold Start: < 45s
- Warm: < 20s
- Reacquisition: 1s
Timing Precision: 5ns
Update Rate: 100Hz
Latency: < 10ms
VANT Voltage Range: 3.0 to 5.0V
- Max current: 150mA
Interfaces:
- UART (x4)
- Ethernet
- USB device (2.0, HS)
- SDIO (mass storage)
- GPIO user programmable (x2)
- Event markers (x2)
- Configurable PPS out

Documentation

Schematic
KiCad Files
Board Dimensions
STEP File
Hookup Guide
- Software: RxTools
- Correction Service: Agnostic Corrections
Component Datasheets:
Building a GNSS System
GitHub Hardware Repo
