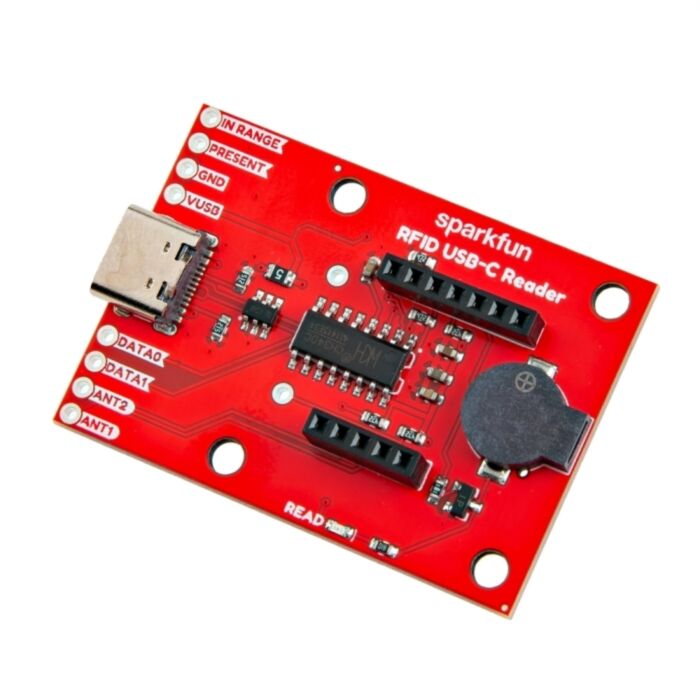

SparkFun RFID USB-C Reader

SKU: SEN-28020 Brand: Sparkfun

The SparkFun RFID USB-C Reader provides a streamlined solution for reading low-frequency RFID tags. This user-friendly breakout board, featuring a USB-C...

Special Price $36.18 AUD, inc GST

Regular Price $45.06 AUD, inc GST

$32.89 AUD, exc GST

Special pricing ends 25 August 2025

* this special may end earlier than shown

Available with a lead time
Expect dispatch between Jun 05 and Jun 09

The SparkFun RFID USB-C Reader provides a streamlined solution for reading low-frequency RFID tags. This user-friendly breakout board, featuring a USB-C connector and a reliable CH340C USB-to-serial chip, is designed for seamless integration withID-Innovations Tiny RFID modules(excluding Mifare and ID-3XX models marked with an “MF”). It includes integrated LED and buzzer indicators for clear read confirmations, which can be easily disabled to suit your preferences. This Reader also supports multiple output formats, including the default ASCII, Magnetic Emulation, and Wiegand26, offering greater flexibility for diverse applications.

Getting started is quick and straightforward. Simply attach your compatible RFID module to the provided 2mm headers, connect a USB-C cable to your computer, and open a terminal program with the serial port configured to 9600bps 8-N-1. You can instantly view scanned RFID tag IDs, making it an ideal tool for various RFID applications. The expanded output options allow for easier integration with a wider range of systems compared to previous versions.

Note:While most ID-innovations modules have an internal antenna, ID-3XX modules do not have an antenna and require a coil. Users should consult with the module's datasheet when purchasing.

Features & Specs

Voltage In: Typically 5V via USB
USB-C Connector
5V/1A Resettable Fuse
ESD Protection Diodes for USB Data Pins
CH340 USB-to-Serial Converter
ID-Innovations RFID Read Module Footprint
Read LED
Magnetic Buzzer
Jumpers
- USB Shield:SHLD
- Read LED:LED
- Buzzer:BUZZ
- Output Format Select:MD1andMD2
Board Dimensions: 1.75" x 1.25" (44.45mm x 31.75mm)

Documentation

How to Install CH340 Drivers
