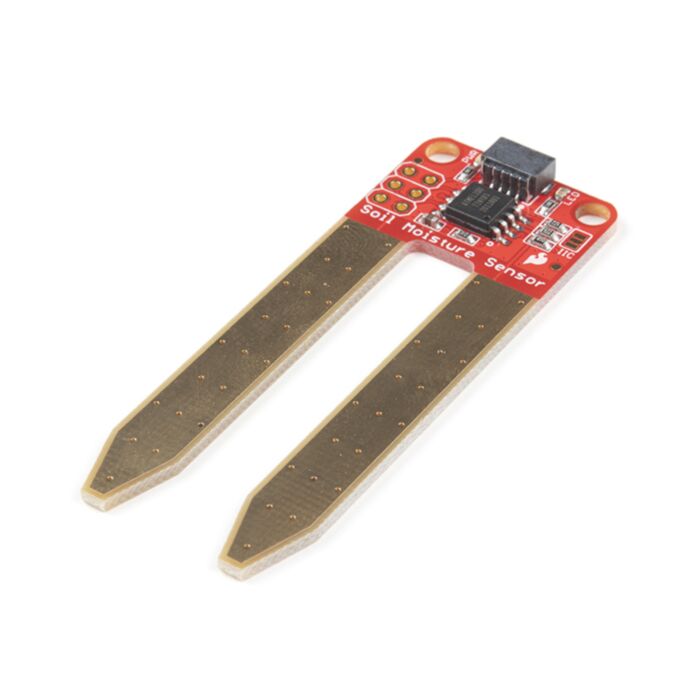

SparkFun Qwiic Soil Moisture Sensor

SKU: SEN-17731 Brand: Sparkfun

The SparkFun Qwiic Soil Moisture Sensor is a simple breakout for measuring the moisture in soil and similar materials. The soil moisture sensor is pretty straightforward...

$32.70 AUD, inc GST

$29.73 AUD, exc GST

Available with a lead time
Expect dispatch between Nov 28 and Dec 02

Quantity Discounts:

10-25 $28.84 (exc GST)
25+ $28.24 (exc GST)

The SparkFun Qwiic Soil Moisture Sensor is a simple breakout for measuring the moisture in soil and similar materials. The soil moisture sensor is pretty straightforward to use. The two large, exposed pads function as probes for the sensor, together acting as a variable resistor. The more water that is in the soil means the better the conductivity between the pads will be, resulting in a lower resistance and a higher SIG out. This version of the Soil Moisture Sensor includes a Qwiic connector, making it even easier to use this sensor!

To get the SparkFun Soil Moisture Sensor functioning, all you will need is to connect the VCC and GND pins to your Arduino-based device (or compatible development board). You will receive a SIG out, which will depend on the amount of water in the soil. One commonly known issue with soil moisture senors is their short lifespan when exposed to a moist environment. To combat this, we’ve had the PCB coated in gold finishing (ENIG, or Electroless Nickel Immersion Gold).

Note: Check the Hookup Guide below for assembly and weatherproofing instructions, as well as a simple example project that you can put together yourself!

Get Started with the Soil Moisture Sensor Guide

Documents

This product is listed in:

Sensors>Soil Moisture
