SparkFun Qwiic Navigation Switch

SKU: PRT-27576 Brand: Sparkfun

The SparkFun Navigation Switch adds a small, joystick-like 5-way tactile switch to your I2C bus! When connected to a microcontroller, push the 5-way...

Special Price $8.66 AUD, inc GST

Regular Price $10.81 AUD, inc GST

$7.87 AUD, exc GST

Special pricing ends 02 July 2025

* this special may end earlier than shown

Available with a lead time
Expect dispatch between Apr 09 and Apr 14

Product Overview

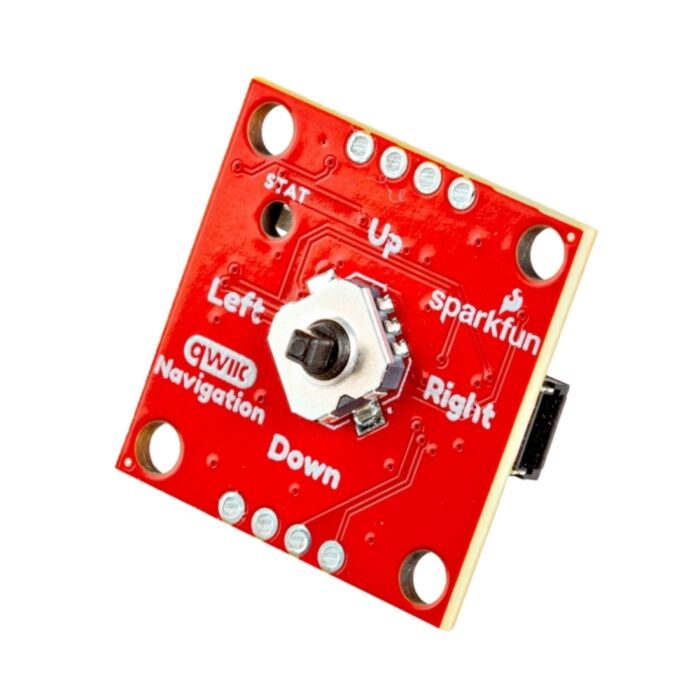

The SparkFun Navigation Switch adds a small, joystick-like 5-way tactile switch to your I²C bus! When connected to a microcontroller, push the 5-way tactile switch toward a direction (up, down, left, right, or center) to provide additional input for your application. The built-in RGB status LED provides visual feedback indicating when a switch is pushed.

Populated on the board is a 5-way tactile switch. Each direction includes a momentary switch that is read by the PCA9554 8-bit I²C I/O expander and notifies the microcontroller when a switch is pushed. The microcontroller will then provide visual feedback by writing to the non-addressable RGB LED. Each channel of the RGB LED can be disconnected from the PCA9554's GPIO and connected to a different input. An interrupt pin is also broken out to notify your microcontroller when a state has changed quickly. We've also included an LED for power. Utilizing our handy Qwiic system, no soldering is required to connect it to the rest of your system. However, Sparkfun still have broken out 0.1"-spaced pins if you prefer a breadboard.

If you need multiple Qwiic Navigation Switches for your project, fear not! Each board has a configurable I²C address, so you can daisy-chain multiple Navigation Switches over Qwiic and address each individually.

We've written a basic example for the Qwiic Navigation Switch in our GitHub Hardware repository. You will need the SparkFun I2C Expander Arduino Library to read or write to the PCA9554's eight separate I/O pins. You can download the library through the Arduino library manager by searching 'SparkFun I²C Expander Arduino Library', or you can get the GitHub repo as a .zip file and install the library from there.

This board is great for projects requiring additional input switches. Add a Qwiic Navigation Switch to your project when navigating a menu, or even add it to a small remote to control a robot!

Features & Specs

Input voltage: 3.3V
5-way tactile switch
PCA9554 8-bit I2C I/O expander
2x Horizontal Qwiic connectors
2.2kO I2C pull-up resistors
Breakout PTHs
- GND: Ground
- 3V3: 3.3V
- SDA: I2C Data
- SCL: I2C Clock
- INT: Interrupt, active low
- 5: GPIO5
- 6: GPIO6
- 7: GPIO7
LEDs
- RGB non-addressable status
- Red power
Jumpers
- Power LED: PWR
- GPIO7/Red LED: 7
- GPIO6/Green LED: 6
- GPIO5/Blue LED: 5
- I2C pull-up resistors: I2C
- I2C selectable address (ADR2, ADR1, ADR0)
  - 0x20 (Default): 000
  - 0x21: 001
  - 0x22: 010
  - 0x23: 011
  - 0x24: 100
  - 0x25: 101
  - 0x26: 110
  - 0x27: 111
Board Dimensions: 1.0in. x 1.0in. (25.4mm x 25.4mm)
Weight: 2.6g
