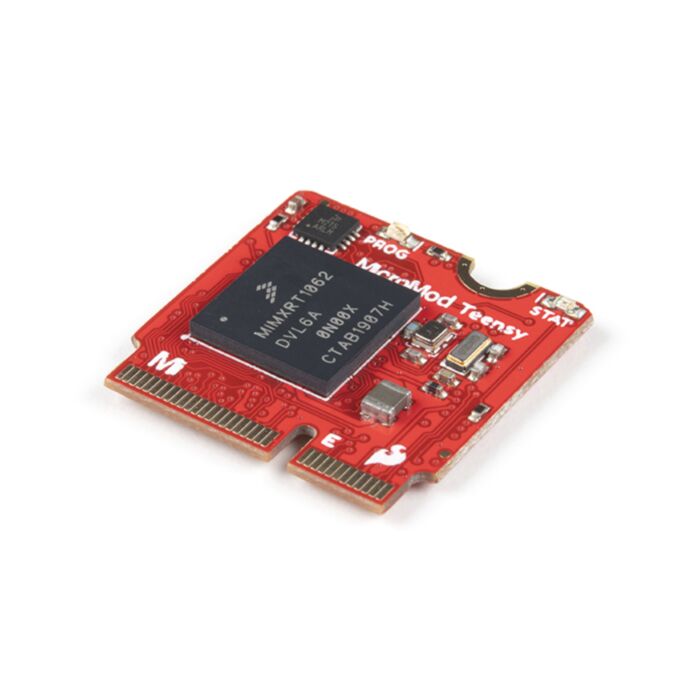

SparkFun MicroMod Teensy Processor

SKU: DEV-16402 Brand: Sparkfun

The SparkFun MicroMod Teensy Processor leverages the awesome computing power of the NXP iMXRT1062 chip and pairs it with the M.2 MicroMod connector to allow you...

$44.20 AUD, inc GST

$40.18 AUD, exc GST

Available with a lead time
Expect dispatch between Dec 09 and Dec 12

Quantity Discounts:

10-25 $38.97 (exc GST)
25+ $38.17 (exc GST)

The SparkFun MicroMod Teensy Processor leverages the awesome computing power of the NXP iMXRT1062 chip and pairs it with the M.2 MicroMod connector to allow you to plug it into your choice of compatible MicroMod Carrier Board. With the M.2 MicroMod connector, connecting your Teensy Processor is a breeze. Simply match up the key on your processor's beveled edge connector to the key on the M.2 connector and secure it with a screw (included with all Carrier Boards). Adding a Teensy to your desired project has never been easier!

The Teensy Processor Board boasts some impressive computing power with an ARM Cortex-M7 processor operating at clock speeds up to 600MHz, 8MB Flash Memory and 1024K RAM Memory. On top of all that processing power, the board features two serial UART ports, two I²C buses, two SPI ports, CAN-Bus, 12 GPIO, dedicated digital, analog, and PWM pins, USB-Host capability, digital audio and since many of the pins on the iMXRT1062 support multiple signal types you can customize it even further depending on your project's needs.

MicroMod is a modular interface ecosystem that connects a microcontroller “processor board” to various “carrier board” peripherals. Utilizing the M.2 standard, the MicroMod standard is designed to easily swap out processors on the fly. Pair a specialized carrier board for the project you need with your choice of compatible processor!

Get Started with the SparkFun MicroMod Teensy Processor Board Hookup Guide

Features

3x Serial Ports (one dedicated to USB, two Serial UART)
2x SPI
2x I²C Bus
1x CAN-Bus
1x I2S Digital Audio
USB Host
1x SDIO for SD
2x Dedicated Analog Pins (Up to 14 available for use)
2x Dedicated PWM Pins (Up to 22 available for use)

Documents

MicroMod Teensy Processor Documentation:

MicroMod Documentation:

Teensy Documentation:

This product is listed in:

Development Boards>Teensy
