SparkFun LiPo Charger Plus

Rating:

100% of 100

SKU: PRT-15217 Brand: Sparkfun

The SparkFun LiPo Charger Plus is the souped-up power option in the SparkFun line of single-cell lithium polymer (LiPo) battery chargers. With this iteration, we've...

$19.70 AUD, inc GST

$17.91 AUD, exc GST

Available with a lead time
Expect dispatch between Jan 24 and Jan 27

Quantity Discounts:

10-25 $17.19 (exc GST)
25+ $16.65 (exc GST)

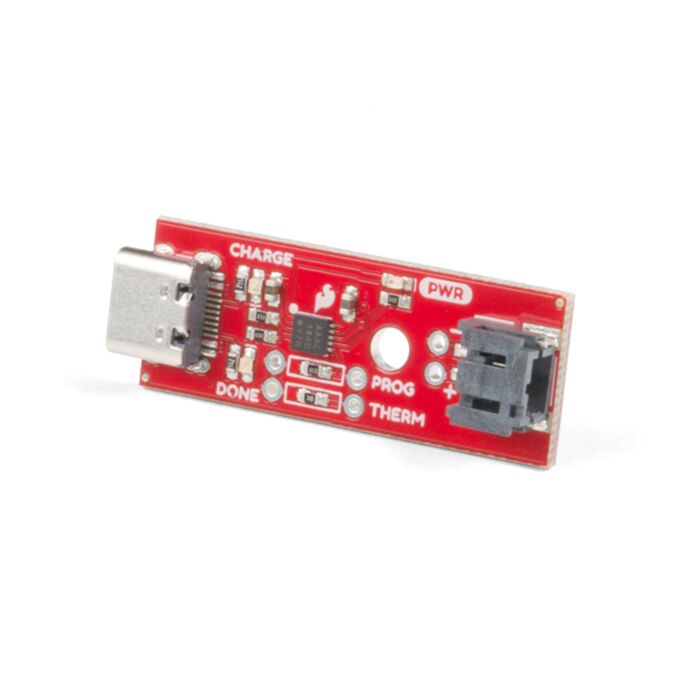

The SparkFun LiPo Charger Plus is the souped-up power option in the SparkFun line of single-cell lithium polymer (LiPo) battery chargers. With this iteration, we've changed the input charge connector to USB-C and provided charge rate selection as well as optional thermal protection. Charge, power, and done LEDs clearly indicate the status of your charging process. This board can be used for any of the 2-pin JST connector single cell LiPo batteries Sparkfun carry.

With an input voltage between 3.75V-6V, the MCP73833 can charge up to a maximum rate of 1000mAh and provides two forms of thermal protection. An internal sensor maintains maximum charging rate until the die temperature of the IC reaches ~95°C; the charge controller will then reduce the charge rate to prevent overheating. The MCP73833 also has an optional input pin for an NTC (negative-temperature coefficient) thermistor, thus gating the battery against possible damage.

Get Started with the SparkFun LiPo Charger Plus Hookup Guide

Features

Complete Linear Charge Management Controller
- Integrated Pass Transistor
- Integrated Current Sense
- Integrated Reverse Discharge Protection
Constant Current / Constant Voltage Operation with Thermal Regulation
Programmable Charge Current: 1A Maximum
Preconditioning of Deeply Depleted Cells
- Selectable Current Ratio
- Selectable Voltage Threshold
Cell Temperature Monitor
Low-Dropout Linear Regulator Mode
Supply Voltage: 3V-6V
Dimensions: 40 x 15 x 7 mm (incl. package)
