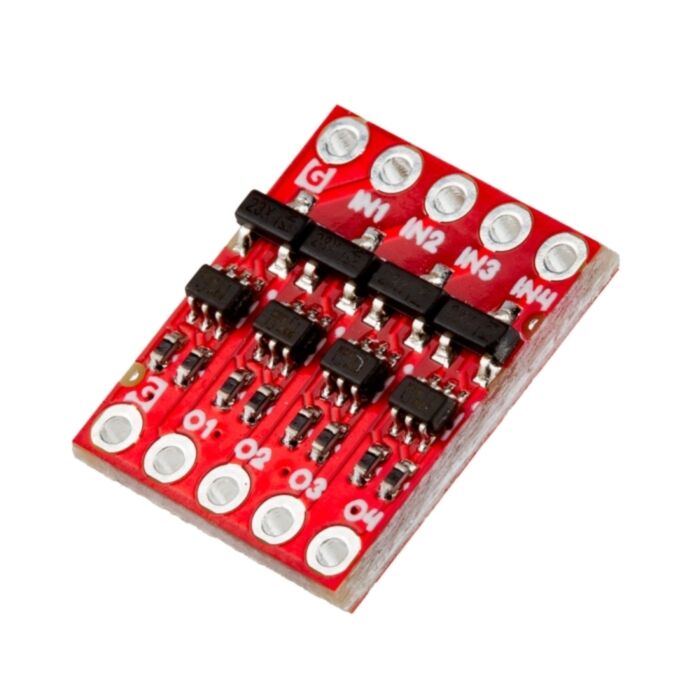

SparkFun Ideal Diode Breakout

SKU: COM-27925 Brand: Sparkfun
Keep your project powered up during power supply hot swaps with the SparkFun Ideal Diode Breakout. This compact (15.2mm x 12.7mm) breakout board features...
Special Price $8.20 AUD, inc GST
Regular Price $10.24 AUD, inc GST
$7.45 AUD, exc GST
Special pricing ends 03 August 2025
* this special may end earlier than shown

Available with a lead time
Expect dispatch between May 12 and May 14

- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Keep your project powered up during power supply hot swaps with the SparkFun Ideal Diode Breakout. This compact (15.2mm x 12.7mm) breakout board features four channels and ground connections, providing reliable one-way voltage control. Ideal diodes minimize forward voltage drop, internal power dissipation, and reverse DC leakage current, making them perfect for dynamic power selection and switchover, over-voltage protection, and projects requiring stable power input.

This breakout boasts impressive performance with a typical forward voltage drop as low as 8mV at 0.1A (20V input) and 62mV at 1A (20V input), ensuring efficient power delivery. The forward voltage drop is typically 275mV at 4A (20V input) for higher current applications. The typical on-resistance ranges from 69mO (20V, 4A) to 260mO (1.8V, 0.1A), depending on the input voltage and current. Reverse leakage current is minimal, ranging from -50µA to -560µA depending on the reverse voltage and again on the input voltage.

Features & Specs

  • Board Measurements: 15.2mm x 12.7mm
  • Typical Forward Voltage Drop:
    • 8mV (I=0.1A, VIN=20V)
    • 12mV (I=0.1A, VIN=5V)
    • 26mV (I=0.1A, VIN=1.8V)
    • 62mV (I=1A, VIN=20V)
    • 79mV (I=1A, VIN=5V)
    • 120mV (I=1A, VIN=1.8V)
    • 275mV (I=4A, VIN=20V)
    • 350mV (I=4A, VIN=5V)
    • 350mV (I=4A, VIN=1.8V)
  • Typical On Resistance:
    • 69mO (VIN=20V, I=4A)
    • 62mO (VIN=20V, I=1A)
    • 78mO (VIN=20V, I=0.1A)
    • 88mO (VIN=5V, I=4A)
    • 79mO (VIN=5V, I=1A)
    • 120mO (VIN=5V, I=0.1A)
    • 160mO (VIN=1.8V, I=4A)
    • 120mO (VIN=1.8V, I=1A)
    • 260mO (VIN=1.8V, I=0.1A)
  • Typical Reverse Leakage Current:
    • -50µA (VIN=1.8V, V_fwd=-1V)
    • -190µA (VIN=1.8V, V_fwd=-8V)
    • -110µA (VIN=5V, V_fwd=-1V)
    • -260µA (VIN=5V, V_fwd=-8V)
    • -420µA (VIN=20V, V_fwd=-1V)
    • -560µA (VIN=20V, V_fwd=-8V)
