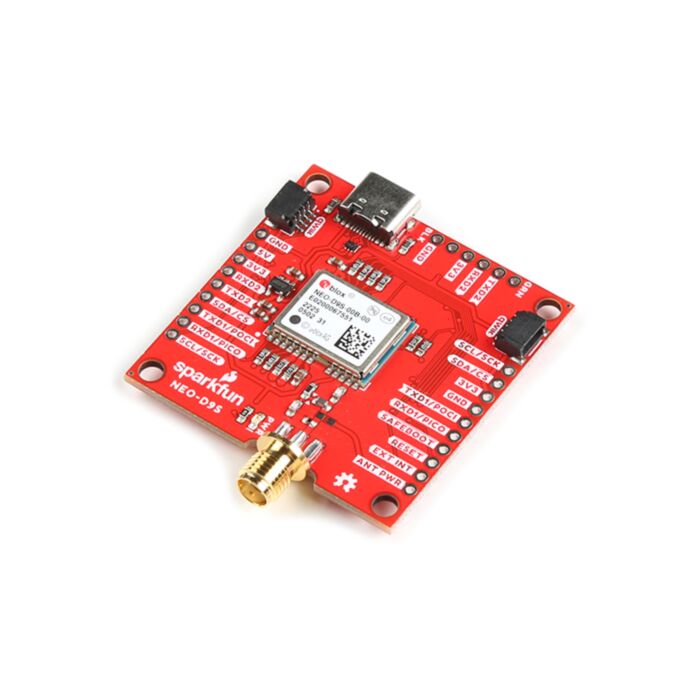

SparkFun GNSS Correction Data Receiver - NEO-D9S (Qwiic)

SKU: GPS-19390 Brand: Sparkfun

The SparkFun NEO-D9S GNSS Correction Data Receiver is a satellite data receiver for L-Band correction broadcast...

$234.95 AUD, inc GST

$213.59 AUD, exc GST

Available with a lead time
Expect dispatch between May 15 and May 20

Quantity Discounts:

5-10 $207.18 (exc GST)
10+ $202.91 (exc GST)

The SparkFun NEO-D9S GNSS Correction Data Receiver is a satellite data receiver for L-Band correction broadcast. It can be configured for use with a variety of correction services including u-blox's PointPerfect satellite GNSS augmentation service, which provides homogenous coverage in the contiguous USA and Europe. With a clear view of the sky, especially a clear view to the South, it decodes the satellite transmission and outputs a correction stream, enabling a multi-band high-precision GNSS receiver (such as the u-blox ZED-F9P) to reach accuracies down to centimeter-level positioning without needing a separate RTK or NTRIP correction!

The board is equipped with a USB-C connector so you can hook the board to your laptop and configure the device using u-blox u-center if you want to. We've also equipped the breakout board with two Qwiic connectors, so you can connect it quickly and easily to your favorite development board and control it using our sophisticated u-blox GNSS Arduino Library. An SMA connector is included for a secure connection to an L-Band antenna. Power, I²C, UART1, UART2, and SPI are broken out to 0.1" spaced PTH pins. By connecting the NEO-D9S breakout to one of the ZED-F9P's communication ports, you will be able to know where your (or any object's) X, Y, and Z location is to better than an inch, without needing a separate correction source!

Please Note: The u-blox Thingstream PointPerfect Correction Service is currently only available in the USA's 48 contiguous states and in Europe. Please see the PointPerfect Coverage Map and Product Summary for more details. Please keep in mind that u-blox reserves the right to not approve all applicants to this system.Accessories Required: This product requires a suitable L-Band antenna. Be sure to check out the Hookup Accessories below to pick a suitable antenna for your project.

The SparkFun Qwiic Connect System is an ecosystem of I²C sensors, actuators, shields and cables that make prototyping faster and less prone to error. All Qwiic-enabled boards use a common 1mm pitch, 4-pin JST connector. This reduces the amount of required PCB space, and polarized connections mean you can’t hook it up wrong.

Get Started with the SparkFun NEO-D9S GNSS Correction Data Receiver Guide

Features

1x USB Type C Connector
2x Qwiic Connectors
Default I²C Address: 0x43
Integrated SMA connector for use with L-Band antenna of your choice
Concurrent reception with L-Band Satellite
Receives L-Band
- 1525 MHz to 1559 MHz
Time to First Frame
- <10s @ 2400bps
User Data Rates
- 600, 1200, 2400, 4800 baud
Vehicle Dynamics
- Dynamics: +/- 2g acceleration for all data rates (600 bit/s, 1200 bit/s, 2400 bit/s, 4800 bit/s)
- Velocity: Up to and including 300 km/h
Voltage: 5V or 3.3V but all logic is 3.3V
Current Consumption (Acquisition & Tracking):
- Peak: 130mA
- Average: 35mA
Power LED
Jumpers
- USB Shield
- Power
- 3v3 (for UART2 Port)
- I²C Pull-Up Resistors
- SPI
Supports UBX protocols over UART or I²C interfaces
Board Dimensions
- 1.70" x 1.70" (43.2mm x 43.2mm)

Documents

SparkFun Resources

u-blox Resources
