SparkFun Environmental Sensor Breakout - BME680 (Qwiic)

Rating:

100% of 100

SKU: SEN-16466 Brand: Sparkfun

The SparkFun BME680 Environmental Sensor is a breakout that combines a gas sensor with temperature, humidity and barometric pressure sensing for a complete environmental...

$34.05 AUD, inc GST

$30.95 AUD, exc GST

Available with a lead time
Expect dispatch between Apr 07 and Apr 10

Quantity Discounts:

10+ $30.03 (exc GST)
25+ $29.41 (exc GST)

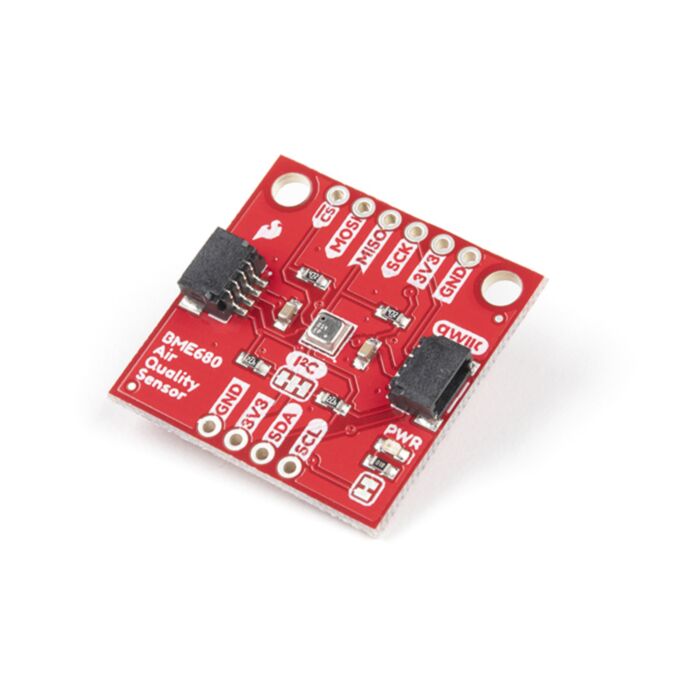

The SparkFun BME680 Environmental Sensor is a breakout that combines a gas sensor with temperature, humidity and barometric pressure sensing for a complete environmental sensor in a single package. The gas sensor on the BME680 can detect a wide variety of volatile organic compounds (or VOC for short) to monitor indoor air quality. Combine that with precise temperature, humidity, and barometric pressure and the BME680 can work as a completely standalone environmental sensor all in a 1in. x 1in. breakout!

The sensor communicates via either I²C or SPI. We've broken out the I²C pins to our Qwiic system so no soldering is required to connect it to the rest of your system but if you would prefer, both the I²C and SPI pins are also broken out to standard 0.1in.-spaced pins.

Note: Getting actual indoor air quality (IAQ) from the BME680 can be difficult. If you would like to use the BME680 for precise IAQ measurements, Sparkfun recommend using Bosch's BSEC Software. If you need a more direct sensor Sparkfun recommend the SparkFun Environmental Sensor Combo which uses the CCS811 alongside the BME280.

The SparkFun Qwiic connect system is an ecosystem of I²C sensors, actuators, shields and cables that make prototyping faster and less prone to error. All Qwiic-enabled boards use a common 1mm pitch, 4-pin JST connector. This reduces the amount of required PCB space, and polarized connections mean you can't hook it up wrong.

Get Started With the SparkFun BME680 Environmental Sensor Guide

Features

Uses I²C interface (Qwiic-enabled)
- I²C Addresses: 0x77 (Default) or 0x76
- 2x Qwiic Connectors
Operating voltage range
- 1.71V - 3.6V
- Typically 3.3V if using the Qwiic cable
Relative humidity
- Operating range: 0% to 100%
- Absolute Accuracy: ±3%RH
- Resolution: ±0.008%RH
Temperature
- Operating range: -40°C to 85 °C
- Absolute Accuracy: ±0.5°C to ±1.0°C
- Resolution: 0.01°C
Pressure
- Operating range: 300hPa - 1100hPa
- Relative accuracy: ±12Pa (25°C to 40°C @ constant RH)
- Absolute accuracy: ±60Pa (0°C to 65°C)
- Resolution: 0.18PA, highest oversampling
Gas
- Resolution of gas sensor resistance: 0.05% to 0.11%
Typical current consumption (varies based on mode and active sensor)
- 2.1µA to 18mA
- 0.15 µA (sleep mode)
