SparkFun Buck Regulator Breakout - 3.3V (AP63203)

SKU: COM-18356 Brand: Sparkfun

Featuring the AP63203, this breakout board takes advantage of a 2A synchronous buck converter that has a wide input voltage range of 3.8V to 32V...

$9.60 AUD, inc GST

$8.73 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Fastest delivery: Tomorrow* Disclaimer:
For next-day delivery, the shipping address must be in the AusPost next-day network, eParcel Express must be selected, and the order must be placed before 2PM AEST Mon-Thurs excluding NSW Public Holidays. Orders may be delayed due to AusPost pickup timings and order verifications. eParcel Express is typically a 1-day service within the AusPost next-day network, though it is sometimes 2+ days.

Quantity Discounts:

10-25 $8.46 (exc GST)
25+ $8.29 (exc GST)

Recommended Essentials:

DC Barrel Power Jack/Connector

$2.65

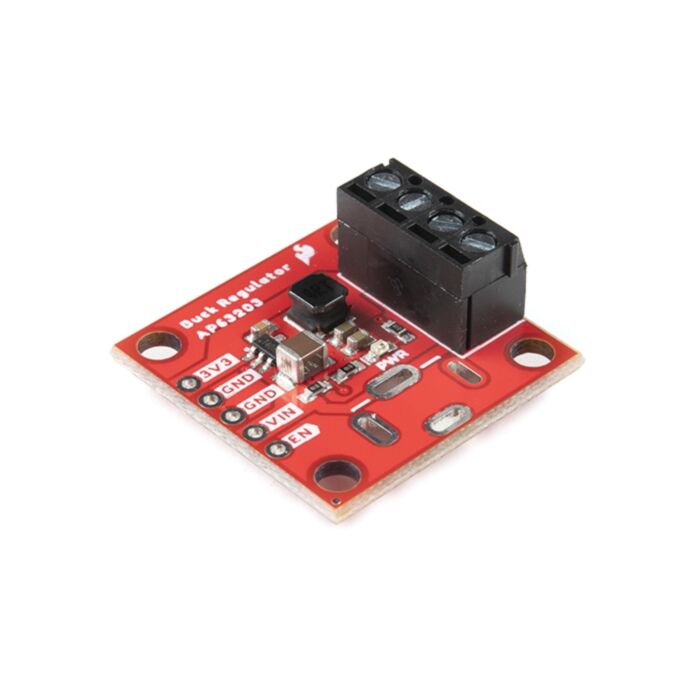

Who doesn't occasionally need power regulation? Sparkfun certainly do, so we've designed the SparkFun Buck Regulator Breakout to help us with just such a task. Featuring the AP63203 from Diodes Inc, this breakout board takes advantage of a 2A synchronous buck converter that has a wide input voltage range of 3.8V to 32V and fully integrated 125mΩ high-side power MOSFET/68mΩ low side power MOSFET to provide high-efficiency step-down DC/DC conversion. All of this snuggled up in a low-profile, TSOT26 package that's integrated into a 1in. by 1in. board.

Input power for this Buck Regulator can be supplied in a number of ways. There are screw terminals on the right side of the board, solder pads for a barrel jack, which can be mounted on the top or bottom side of the board, and the plated through holes on the left side of the board can all be used as input. Output can be obtained via the screw terminals or the plated through holes. Additionally, to dissipate some of the excess heat, we've added a copper pad for a heat sink on the back of the board.

Frequency Spread Spectrum (FSS) reduces EMI and a proprietary gate driver scheme resists switching node ringing without sacrificing MOSFET turn-on and turn-off times, which further erases high-frequency radiated EMI noise.

Get Started with the SparkFun Buck Regulator Guide

Specifications

VIN 3.8V to 32V
VOUT 3.3V
Up to 2A Continuous Output Current
0.8V ± 1% Reference Voltage
22µA Ultralow Quiescent Current
Switching Frequency - 1.1MHz
Supports Pulse Frequency Modulation (PFM)
- Up to 80% Efficiency at 1mA Light Load
- Up to 88% Efficiency at 5mA Light Load
Fixed Output Voltage - 3.3V
Proprietary Gate Driver Design for Best EMI Reduction
Frequency Spread Spectrum (FSS) to Reduce EMI
Precision Enable Threshold to Adjust UVLO
Protection Circuitry
- Overvoltage Protection
- Cycle-by-Cycle Peak Current Limit
- Thermal Shutdown
