SMT Breakout PCB for 32-QFN or 32-TQFP - 3 Pack!

Rating:

100% of 100

SKU: ADA1163 Brand: Adafruit

Beguiled by a fancy new chip that is only available in a QFP or QFN pinout? This breakout PCB set will make your life much much easier and get you prototyping faster...

$12.75 AUD, inc GST

$11.59 AUD, exc GST

Available with a lead time
Expect dispatch between Jan 03 and Jan 07

Quantity Discounts:

10-25 $11.13 (exc GST)
25+ $10.78 (exc GST)

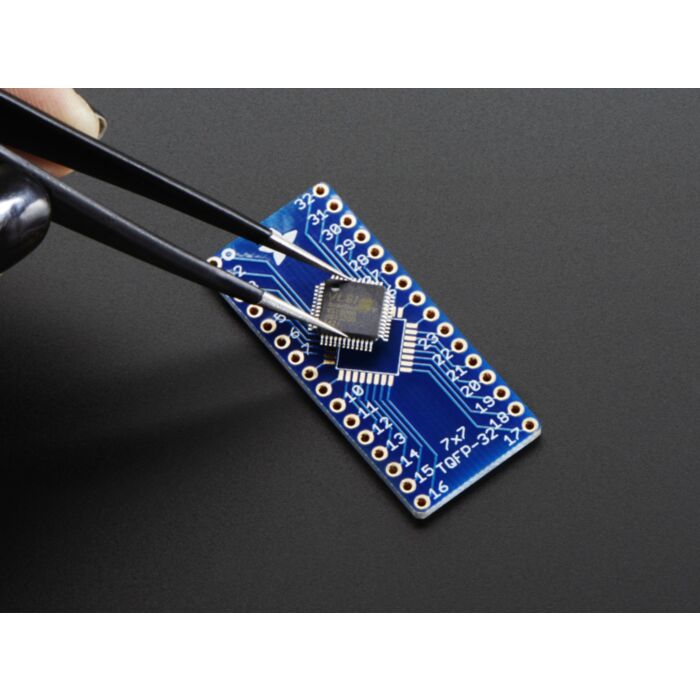

Beguiled by a fancy new chip that is only available in a QFP or QFN pinout? This breakout PCB set will make your life much much easier and get you prototyping faster than ever. One side has a 32-QFP pin out with traces going to two rows of 0.1" spaced holes, the other has 32-QFN. Solder your chip to either side and you're ready to rock on any solderless breadboard.

Each item comes with three PCBs, each PCB is identical and can support either a 7mm square QFP or 5mm square QFN chip. Standard thickness PCBs, with 0.6" spacing between the two rows.

Technical Details

This product is listed in:

Breakouts & Modules>SMD Adapters
