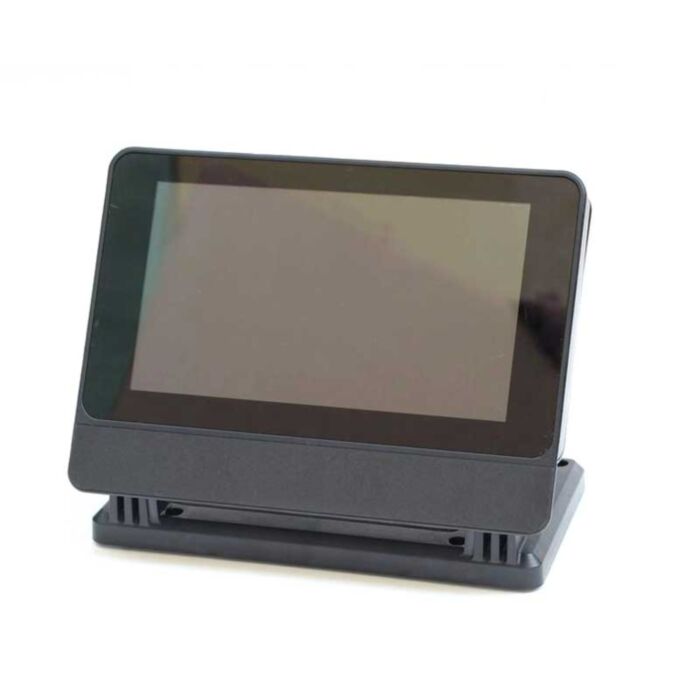

SmartiPi Touch Pro - Large

The SmartiPi Touch is a case and stand for the official Raspberry Pi 7" Touchscreen LCD and your Raspberry Pi. The display securely fits into the case with four screws, while a Raspberry Pi 2, 3, 4, B+ or A+ is enclosed in the compartment on the back with a simple door. The camera hole can be completely hidden with the included adhesive panel. The adhesive panel can also be customized with your logo.

Please Note:

• Does not include Raspberry Pi or Cameras
• Is NOT compatible with the Raspberry Pi HQ Camera

This case creates an all-in-one Raspberry Pi computer with a single USB-C port or Micro USB port in the back to power the components in the case. The Raspberry Pi is mounted behind the display and the ports are flush with the edge of the display.  An included port blocking part for Pi 3 or 4 allows you to only allow access to the ports that you want to be exposed. There is also a second set of threaded inserts to mount your own development board or another piece of hardware. Perfect for an industrial or commercial application where you want to add your own development board to the case. The case is made out of injection-molded ABS plastic, so it can be drilled or machined for additional customization.

Features

• Included cooling fan with rubber vibration mounts
• Two positions to mount the Raspberry Pi inside the case
• Small panel to cover fan hole if not using fan
• Works with all variants of Raspberry Pi 2,3, or 4
• Micro USB splitter for use with Pi 2 and 3 ( Micro USB input)
• USB-C Splitter for use with Pi 4 ( USB-C input)
• Metal base plate included
• Back access panel for wire routing
• Optional Raspberry Pi camera V1 or V2 mount included. Not compatible with the Raspberry Pi HQ camera.
• The camera hole can be completely hidden with included adhesive front panel
• Custom branded front bezel available
• Included port blocking part for Pi 2,3, or 4 ( cut out plastic knockouts with knife)
• Two small foot mounts ( included) can be used instead of the large stand
• The display can pivot down to 37 degrees off of the surface
• Works with the Official Raspberry Pi Display
• The second set of threaded m2.5 mounting points can be used to mount your own development board ( HAT compatible mounting points )
• Wall eyelets for wall mounting
• 75 mm VESA mount pattern on back
• Optional port extension part to use when mounting the Pi on the opposite site of the case. (not included but can be purchased here)
• Works with HAT boards
• Includes back cover in two available sizes
• The Raspberry Pi display, Raspberry Pi, and Raspberry Pi camera are not included
• The SD card, HDMI port, and audio jack are not accessible once the case is assembled. You can plug in a HDMI or audio cable into the Raspberry Pi inside the case and then run the wire outside the case

Upgrade to the SmartiPi Touch 2

• Full setup guide here
• Product Dimensions (After a 3D model? Smarticase will send you a STEP file if you ask them nicely)
• Please note the Raspberry Pi, Raspberry Pi display, and Raspberry Pi camera not included.

Here are the differences between the small and the large variants of this product:
