Servo Monitor

SKU: GB-3109-0005-0001 Brand: goBilda

The Servo Monitor is a tool that allows you to easily check servo vitals. Just plug a servo controller into one side and a servo into the.....

$60.10 AUD, inc GST

$54.64 AUD, exc GST

Available with a lead time
Expect dispatch between May 24 and May 31

Quantity Discounts:

10-25 $51.91 (exc GST)
25+ $49.17 (exc GST)

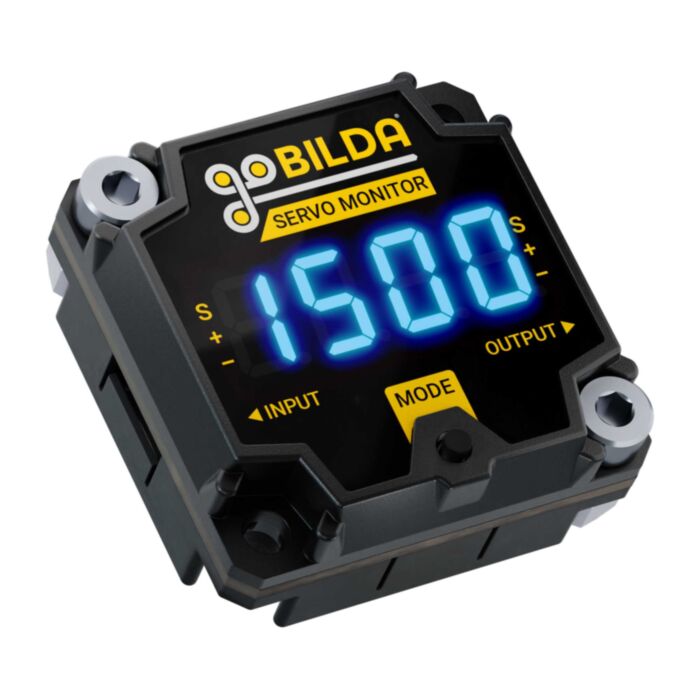

The Servo Monitor is a tool that allows you to easily check servo vitals. Just plug a servo controller into one side and a servo into the other. The screen will display the value for the selected mode in real time! Press the pushbutton to cycle through the five modes.

Modes:

Voltage
This mode displays the voltage being sent to the servo. The wire is used to supply power to the motor within the servo. Sending the correct voltage to a servo is important, and this mode keeps you in-the-know about any excessive voltage, as well as the battery's charge level.
Current
In this mode, the Servo Monitor displays the current in amps. This can give you an indication of how hard the servo is working to maintain a position. You can never have too much potential current in your battery. For example, a battery with a million mAh rating will not burn out your servo; it will just run the servo for an extensive period of time between charges. However, a battery which cannot supply enough current will not allow your servo to live up to its strength and speed potential.
Power
This mode displays the amount of power (in Watts) that the servo's motor is using. While the power in watts can also be derived by multiplying the voltage by the current, this mode is a more convenient way to find that value.
Pulse Width
In this mode, the Servo Monitor displays the width of the pulse of the signal being sent to the servo. This value is displayed in microseconds (µsec) and is the core of how servos are controlled. The pulse width tells the servo where to rotate to (or for continuous rotation servos, what speed and direction to achieve). It’s super helpful to know the pulse width—you can, for example, use it to determine what PWM range your transmitter is sending, or confirm that the code you wrote for your Arduino is working correctly.
Pulse Frequency
In this mode, the Servo Monitor displays the frequency of the Pulse Width Modulation (PWM) Signal. This value is displayed in hertz (how many pulses per second). This is a generally less-critical value than the pulse width, but it can be useful during troubleshooting.

Downloads

STEP File

Specs

Weight	21g (0.7oz)
Input Voltage Range	3.3-15 VDC
Current Consumption	20mA
Pass through Current Max	10A
PWM Range	0 - 3200 µsec
Frequency Range	1-1000Hz
Current Sensing Accuracy	±5%
Voltage Sensing Accuracy	±5%
Pulse Width Sensing Accuracy	±0.1%
Frequency Sensing Accuracy	±0.1%
Version	3.0
