RP-L-170 Thin Film Pressure Sensor

SKU: SEN0293 Brand: DFRobot

This is a long flexible thin film pressure sensor with a length of 170mm, which can be used to realize highly sensitive detection of pressure. The sensor is durable...

$10.60 AUD, inc GST

$9.64 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Mon, 18th of Nov

Quantity Discounts:

10-25 $9.25 (exc GST)
25+ $8.96 (exc GST)

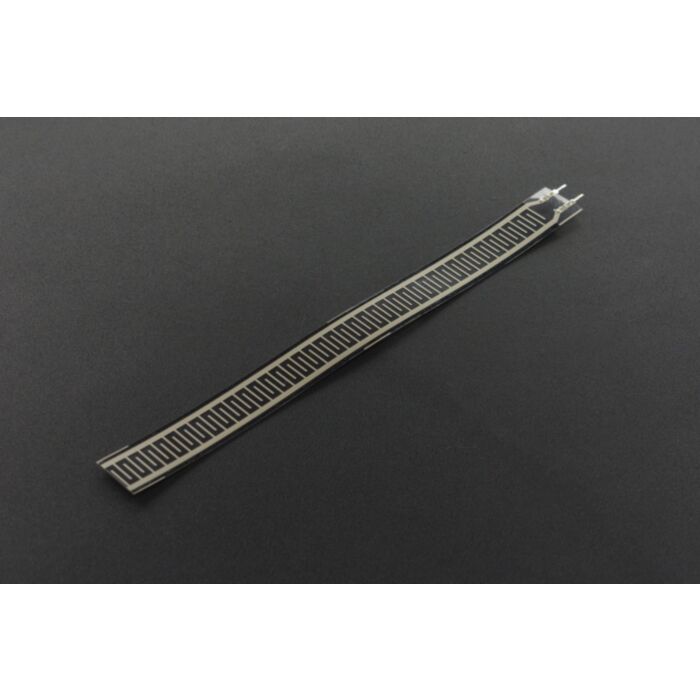

This is a long flexible thin film pressure sensor with a length of 170mm, which can be used to realize highly sensitive detection of pressure. The sensor is durable and designed to sense static and dynamic pressure in a high respond speed. Its advantages of recording the intensity and frequency of force make it widely used in all kinds of applications, such as, pressure switch, bed monitoring system, intelligent sneaker and medical device system. These sensors are also very easy to use.

RP-L flexible pressure sensor is made of ultra-thin film of excellent mechanical property, excellent conductive materials and nanometre pressure sensitive layers. There are thin film and pressure sensitive layer on the upper layer of the sensor, and thin film and conductive circuit on the lower layer. These two layers are glued together by double sided tape. When outside pressure applies to the active area, the disconnected circuit of the lower layer will be connected through the pressure sensitive layer of the upper layer, by which to convert pressure into resistance. The output resistance decreases as pressure increases.

RP-L-170 Dimension Diagram

Force vs Resistance

Specification

Thickness: 0.35mm
Trigger Force: <20g, triggered (default resistance<200kO)
Pressure Measuring Range: 20g~10kg or larger
Static Pressure & Dynamic Pressure Measurement (within the frequency of 10Hz)
Initial Resistance: >10MO
Activation Time: <0.01S
Operating Temperature: -40°C ~ +85°C
Lifespan: >1million times
Hysteresis: +10%,(RF+ -RF-)/FR+,1000g Force
Response Time: <10ms
EMI: Not generate
EDS: Not generate
Drift: <5%, 2.5Kg Force , Static load 24H

Documents

Product wiki

Parts List

RP-L-170 Thin Film Pressure Sensor x1
