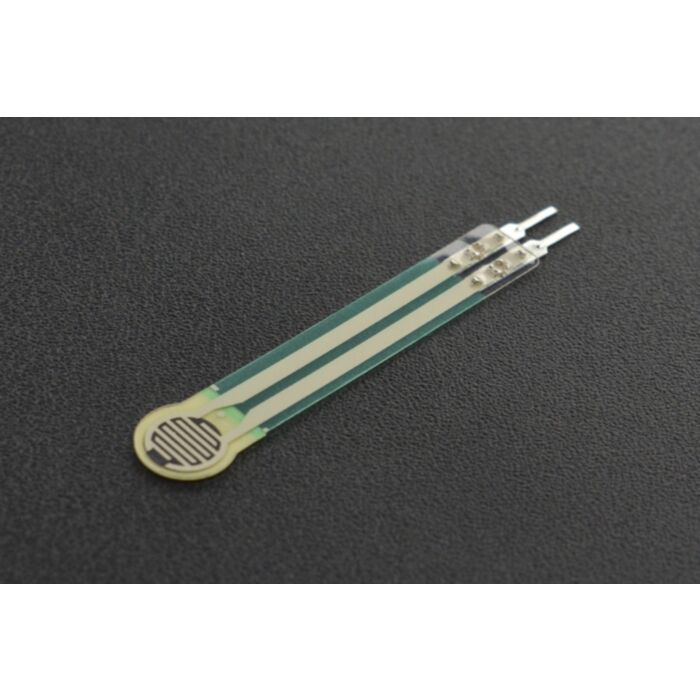

RP-C7.6-LT Thin Film Pressure Sensor

SKU: SEN0298 Brand: DFRobot
This is a circular flexible thin film pressure sensor of long legs with a diameter of 7.6mm, which can be used to realize highly sensitive detection of pressure...
$6.45 AUD, inc GST
$5.86 AUD, exc GST

Available with a lead time
Expect dispatch between Dec 02 and Dec 05

Quantity Discounts:

  • 10-25 $5.63 (exc GST)
  • 25+ $5.45 (exc GST)
- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

This is a circular flexible thin film pressure sensor of long legs with a diameter of 7.6mm, which can be used to realize highly sensitive detection of pressure. The sensor is durable and designed to sense static and dynamic pressure in a high respond speed. Its advantages of recording the intensity and frequency of force make it widely used in all kinds of applications, such as, pressure switch, bed monitoring system, intelligent sneaker and medical device system. These sensors are also very easy to use.



RP-C flexible pressure sensor is made of ultra-thin film of excellent mechanical property, excellent conductive materials and nanometre pressure sensitive layers. There are thin film and pressure sensitive layer on the upper layer of the sensor, and thin film and conductive circuit on the lower layer. These two layers are glued together by double sided tape. When outside pressure applies to the active area, the disconnected circuit of the lower layer will be connected through the pressure sensitive layer of the upper layer, by which to convert pressure into resistance. The output resistance decreases as pressure increases.

RP-C7.6-LT  Dimension Diagram



Force vs Resistance



Specification

  • Thickness: 0.3mm
  • Trigger Force: 30g, triggered (default resistance<200kΩ)
  • Pressure Measuring Range: 30g~1.5kg
  • Static Pressure & Dynamic Pressure Measurement (within the frequency of 10Hz)
  • Initial Resistance: >10MΩ
  • Activation Time: <0.01S
  • Operating Temperature: -40°C ~ +85°C
  • Lifespan: >1million times
  • Hysteresis: +10%,(RF+ -RF-)/FR+,1000g Force
  • Response Time: <10ms
  • EMI: Not generate
  • EDS: Not generate
  • Drift: <5%, 1Kg Force, Static load 24H

Documents

Parts List

RP-C7.6-LTThin Film Pressure Sensor x1
