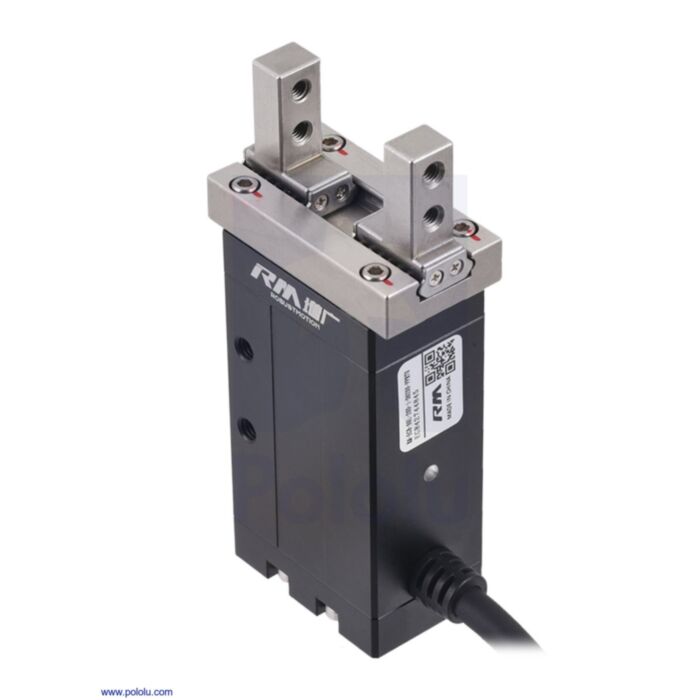

RobustMotion RM-EGB Series 24VDC Compact Finger Gripper, 20D, PNP + RS-485 Interface
Available with a lead time
Expect dispatch between Mar 24 and Mar 26
The compact RM-EGB Series grippers from RobustMotion operate by sliding a pair of fingers together or apart laterally to grip and release. These fingers, which are designed to serve as mounting points for customized (e.g. 3D-printed) extensions, are able to exert consistent force in both directions, allowing them to grab parts internally (by opening into a gap) or externally (by clamping down) with missed pickup and dropped part detection.
 |
Size comparison of the RobustMotion RM-EGB Series 16D (left) and 20D (right) Grippers. |
|---|
These grippers are available in two different sizes and each size is available with or without an RS-485 interface (see comparison table below). They fit small collaborative robots (cobots) such as the Dobot MG400, and operate at 24 VDC, which can be supplied from the MG400. The simple PNP-type PLC interface can connect directly to the MG400 I/O ports. A simple 3D-printed adapter (139k STEP) can be used to mount a gripper to the MG400 arm.
| RobustMotion RM-EGB gripper: |  #5403: 16D, simple PNP |  #5404: 16D, PNP + RS-485 |  #5405: 20D, simple PNP |  #5406: 20D, PNP + RS-485 |
|---|---|---|---|---|
| PNP-type PLC interface: | ||||
| RS-485 Modbus RTU interface: | – | – | ||
| Rated Voltage: | 24 V (±10%) | |||
| Rated Current: | 0.3 A | 0.4 A | ||
| Peak Current: | 0.6 A | 0.8 A | ||
| Max. gripping force: | 60 N (±15%) | 80 N (±15%) | ||
| Stroke: | 6 mm | 10 mm | ||
| Repeat positioning accuracy: | ±0.02 mm | |||
| Max. opening/closing time: | 0.1 s | 0.18 s | ||
| Size: | 23.5 × 38 × 98 mm | 27.6 × 50 × 108 mm | ||
| Weight: | 220 g | 320 g | ||
| Protection Class: | IP40 | |||
| Price: | ||||
Details for item #5406
This is the larger of the two available gripper sizes, with a max stroke of 10 mm (both fingers combined) and a maximum gripping force of 80 N. It supports Modbus RTU over RS-485 (in addition to the PNP-type PLC interface).
The gripper can cover its full 10 mm stroke length in under 0.18 s. In addition to the fully open and fully closed extremes, the simple PNP-type PLC interface offers two preset intermediate positions (at 4 mm and 8 mm) that are achievable with ±0.02 mm repeatability, and the grip strength can be controlled by selecting from four preset force levels up to 80 N. The RS-485 interface gives more precise control of the position (0% to 100%) and force (25% to 100%). See the RM-EGB user’s manual (2MB pdf) for more information.
 |
- RobustMotion part number: RM-EGB-06L-20D-1-D0200-PRTU
- 3 PNP inputs and 3 PNP outputs for direct connection to a PNP-type PLC:
- Four preset stroke positions: 0, 4, 8, and 10 mm
- Four preset gripping force levels: 25%, 50%, 75%, and 100%
- RS-485 interface:
- Full position control from 0% to 100%
- Force levels from 25% to 100%
- Operating voltage: 24 VDC
- Peak current: 0.8 A
- Maximum gripping force: 80 N
- Maximum stroke length: 10 mm
- Repeat positioning accuracy of ±0.02 mm
- Maximum opening/closing time: 0.18 s over the full 6mm range
- Capable of gripping internally or externally with consistent force output and detection of missed pickup/dropped part
- Size: 27.6 × 50 × 108 mm (1.09" × 1.97" × 4.25")
- Cable length: 200 cm (75")
- Weight: 320 g (390 g including the cable)
Dimensions
 |
Dimensions (in mm) of the RobustMotion RM-EGB Series 20D Gripper. |
|---|
Connections
|
|
The grippers have a 200 cm (80") cable with ten conductors terminating in a 12-pin, 2mm-pitch A2008H-12P connector. RobustMotion recommends cutting the connector off and using the individual wires.
 |
Dimensions
| Size: | 27.6 × 50 × 108 mm (1.09" × 1.97" × 4.25") |
|---|---|
| Weight: | 320 g1 |
General specifications
| Interface: | simple PNP + RS-485 |
|---|---|
| Voltage: | 24 V |
| Lead length: | 200 cm |
| Version: | 20D |
Notes:
File downloads
-
User’s manual for the RobustMotion RM-EGB grippers (2MB pdf)
-
3D-printable adapter for connecting RobustMotion RM-EGB grippers to the Dobot MG400 robot arm (139k STEP)
This adapter is designed to work with the Dobot MG400 robot arm and the RobustMotion RM-EGB Series Grippers.
-
3D-printable adapter for connecting RobustMotion RM-EGB grippers to the Dobot MG400 robot arm (200k STL)
This adapter is designed to work with the Dobot MG400 robot arm and the RobustMotion RM-EGB Series Grippers.
-
3D model of the RobustMotion RM-EGB Series 16D Gripper (2MB STEP)
-
3D model of the RobustMotion RM-EGB Series 20D Gripper (3MB STEP)
