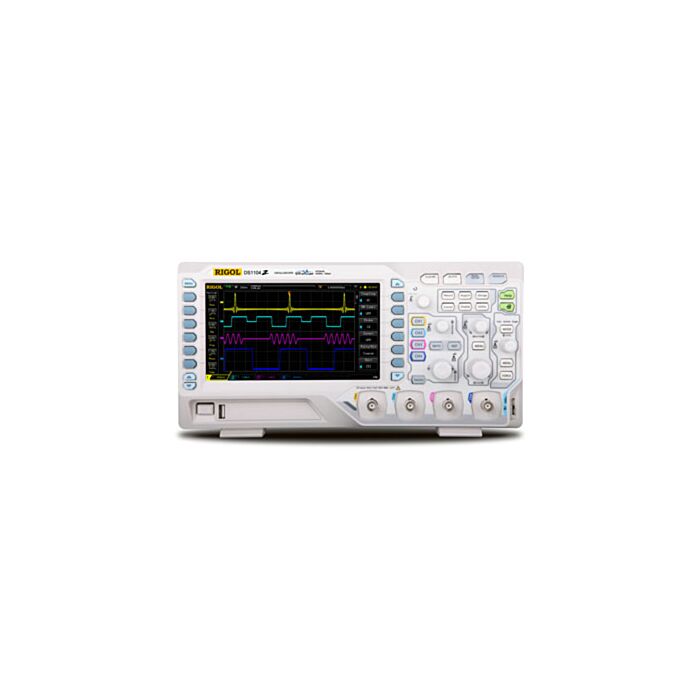

Rigol's DS-1000Z series represent a remarkable breakthrough in price and performance in general purpose 4 channel digital storage oscilloscopes.
Featuring Rigol's popular UltraVision multi-level intensity grading display, deep 12Mpts standard memory, fast 30,000 wfms waveform capture rate and optional serial bus triggering, the DS-1000Z series brings 4 channel oscilloscopes within reach of every service department and educational laboratory.
The DS-1000Z-S versions also include a 2 channel 25MHz waveform generator. Other powerful options include 24Mpts memory depth, real time waveform record, replay and analysis, serial bus triggering and advanced triggering packages.
- 70MHz bandwidth, 4 channels
- 1GS/s real-time sample rate
- 12Mpts standard memory depth
- UltraVision multi-level intensity grading display
- Up to 30,000 wfms/s waveform capture rate
- Up to 60,000 frames real-time waveform recording option
- Low noise floor,dynamic range: 1mV/div to 10V/div
- Optional serial bus triggering and decoding (RS232, I2C, SPI)
- Complete connectivity: LAN (LXI Core device 2011), USB host & device, AUX
- 7 inch WVGA (800x480) display with multiple intensity level waveform display
