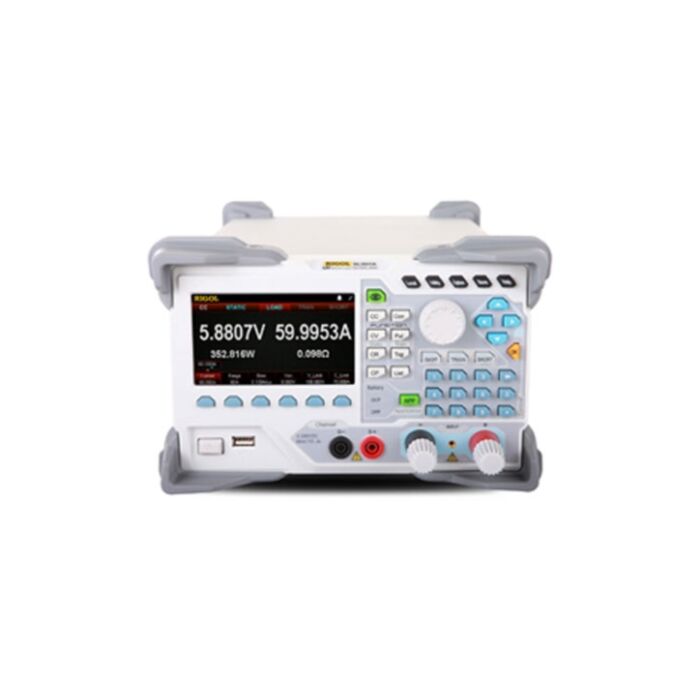

Rigol DL-3021 DC Electronic Load

SKU: DL3021 Brand: Rigol Guides (1)
The Rigol DL-3021 (200W, 40A 150V) is a cost-effective programmable DC electronic loads with performance specifications that rival any instruments in its class
Special Price $892.35 AUD, inc GST
Regular Price $919.95 AUD, inc GST
$836.32 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 12th of Nov

Quantity Discounts:

  • 3+ $794.50 (exc GST)
- +

1 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

The Rigol DL-3021 is cost-effective programmable DC electronic loads with performance specifications that rival any instruments in its class. With a user-friendly interface including graphical charting, the DL3000 series provides various interfaces for remote communication to meet your diverse test requirements. Test power systems and batteries with configurable static, transient, and advanced application modes.

Features

  • Single output, 150 V/40 A/15 kHz, total power up to 200 W
  • Dynamic mode: up to 15 kHz
  • Adjustable current rising speed: 0.001 A/μs to 5 A/μs
  • Min. readback resolution: 0.1 mV,0.1 mA
  • 4.3-inch TFT LCD, capable of displaying multiple parameters and states simultaneously
  • Over-voltage/over-current/overpower/over-temperature/reverse voltage protection
  • 4 static modes: CC, CV, CR, CP
  • 3 dynamic modes: continuous, pulsed, toggled
  • List function supports editing as many as 512 steps
  • Battery test function, OCP test, OPP test, factory test function, etc.
  • Short-circuit test function
  • Power-off memory function
  • Built-in RS232/USB
  • Optional LAN, Digital I/O and GPIB

DL-30000 Series Specifications
