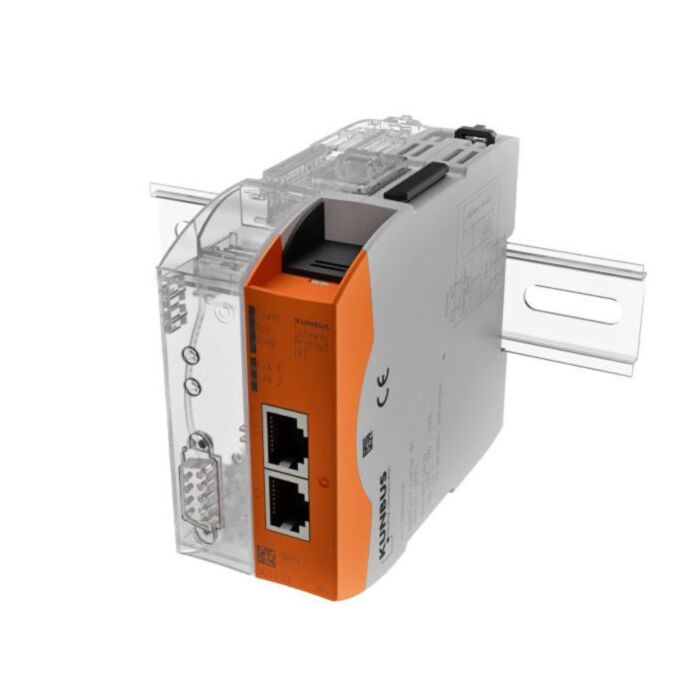

RevPi Gates - PROFINET IRT

SKU: PR100074 Brand: Pimoroni

Integrate Revolution Pi into an industrial network

$589.95 AUD, inc GST

$536.32 AUD, exc GST

Available with a lead time
Expect dispatch between Nov 28 and Dec 03

Quantity Discounts:

3-5 $520.23 (exc GST)
5+ $509.50 (exc GST)

Integrate Revolution Pi into an industrial network

It is not easy to integrate a device into an industrial network. Special protocols are often used for data transmissions, such as Profinet or Profibus. However, when using these gateways integrating Revolution Pi into an industrial network is no problem.

Like all Revolution Pi expansion modules, the gateways are also connected to the base module RevPi Core via the overhead Pi Bridge connector. Thus, up to two gateway modules can be used per system.

The cyclic data exchange between the gateway and the central process image of the RevPi Core 3 takes place every 5 ms, regardless of the bus protocol and system configuration.

Due to the required processing power, it is recommended that the use of gateways are exclusively used in conjunction with the Quad-Core equipped RevPi Core 3.

	PROFIBUS	EtherNet/IP	PROFINET IRT	DMX
Master/Slave	Slave	Slave	Slave	Master/Slave
Bus connector	D-SUB 9F	2 x RJ45	2 x RJ45	8 pole / pitch 3.50
Max. baud rate	up to 12 Mbit/s	100 Mbit/s	100 Mbit/s	-
I/O Data	244 Bytes	512 Bytes	512 Bytes	512 Bytes

Notes

EtherNet/IP gateway module is solely compatible with the ethernet-based Fieldbus protocol EtherNet/IP. Please don't mistake EtherNet/IP protocol with TCP/IP protocol!
24V power supply is mandatory. Gateways don`t work with 12V!
