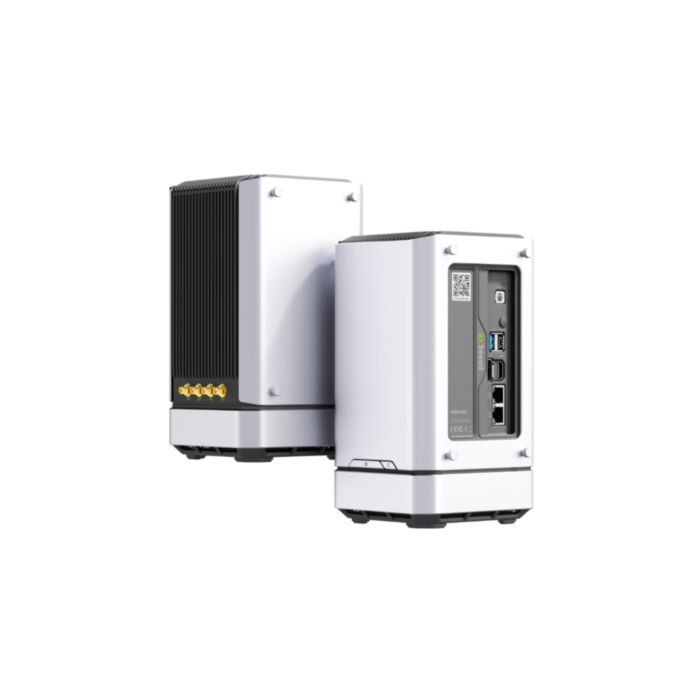

reServer - Compact Edge Server powered by 11th Gen Intel® Core™i3 1115G4 (16G+512SSD/W)

Note

Please make sure to also add the AC Power Cord to use with reServer:

• AC Power Cord Compatible with reServer - US
• AC Power Cord Compatible with reServer - EU

Features

• Compact design for a server with an overall dimension of 132mm*124mm*233mm
• Powered by the latest 11th Gen Intel^®Core™ i3 CPU running up to 4.10GHz and Intel UHD Graphics 48EUs running up to 1.25 GHz
• Richperipherals including dual^®2.5-Gigabit Ethernet ports, USB 3.2 Type-A port, USB 2.0 Type-A port, HDMI port and DP port
• Support hybrid connectivity including 5G, LoRa, BLE and WiFi (5G and LoRa need additional modules)
• Dual SATA III 6.0 Gbps data connectors for 3.5”/2.5" SATA hard disk drives with enough space inside the enclosure to store them both
• M.2 B-Key/ M-Key/ E-Key for expandability such as SSD, LTE/4G/5G, WiFi 6 Modules
• Quiet cooling fan with a large VC heat sink for excellent heat dissipation
• Easy to install, upgrade and maintain with ease of access to the internal components after opening the enclosure
• Pre-installed Windows 10 Enterprise(Unactivated), also support other Windows OS and Linux OS

Description

reServer, as a milestone product of reThings family, is extremely compact and powerful. This smart tiny server is able to work easily and efficiently from the edge to the cloud.

reServer is based on an ODYSSEY X86 v2 board and powered by the latest 11th Gen Intel® Core™ i3 CPU running up to 4.10GHz and Intel UHD Graphics 48EUs running up to 1.25 GHz, which delivers high CPU and AI performance for various applications.

reServer comes with two high-speed 2.5-Gigabit Ethernet ports and supports hybrid connectivity including 5G, LoRa, BLE and WiFi. It enables up to 250% faster performance than Gigabit Ethernet with compatible hardware and provides the transition speed up to 5Gbps using link aggregation.

With an overall dimension of 132mm*124mm*233mm, reServer is only around 1/10 of the size of an ordinary computer case which makes it possible to place reServer on a table, on a self, on any surface you want it to be. The neat structure of reServer also makes it simple to access the hard drives, memory and PCIe slots which allows for easy installation, upgrade and maintenance.

reServer is equipped with a quiet cooling fan as well as a large VC heatsink to ensure silent and stable operations under heavy load, while providing excellent heat dissipation.

Having dual SATA III 6.0Gbps data connectors, reServer is able to equip up to two 3.5” SATA internal hard disk drives or two 2.5" SATA internal hard disk drives to acquire more storage.It also has M.2 adapters to connect to various SSDs for faster read and write speeds.* SATA Internal Hard Disk Drives are not included. SSD is not included in some versions.

reServer supports LoRa technology which makes it possible to connect to a wide range of sensors. It can be applied as an edge computing center for all scenarios that require vast data to collect and process at the edge. The expandability of 5G technology is useful in places where there isn’t always reliable internet connectivity, such as on a farm or in a location with spotty service.*To get LoRa and 5G connectivity, optional modules are needed.

Application

• Small office, home office server
• Industrial Automation
• Robotics
• Healthcare
• Smart Agriculture
• NAS

Specifications

Hardware Overview

Dimensions

Part List

1 x reServer1 x User Manual1 x Screwdriver1 x Fan Cable2 x 2.4/5GHz Wi-Fi Antenna1 x 60W AC-DC Power Adapter1 x 8GB SODIMM DDR4 3200MHz (Already installed)1 x M.2 2280 256GB NVMe PCIe 3.0 SSD (Already installed)1 x M.2 Key E 2230 Dual Band Wi-Fi 6 AX201(CNVio) module (Already installed)

ECCN/HTS
