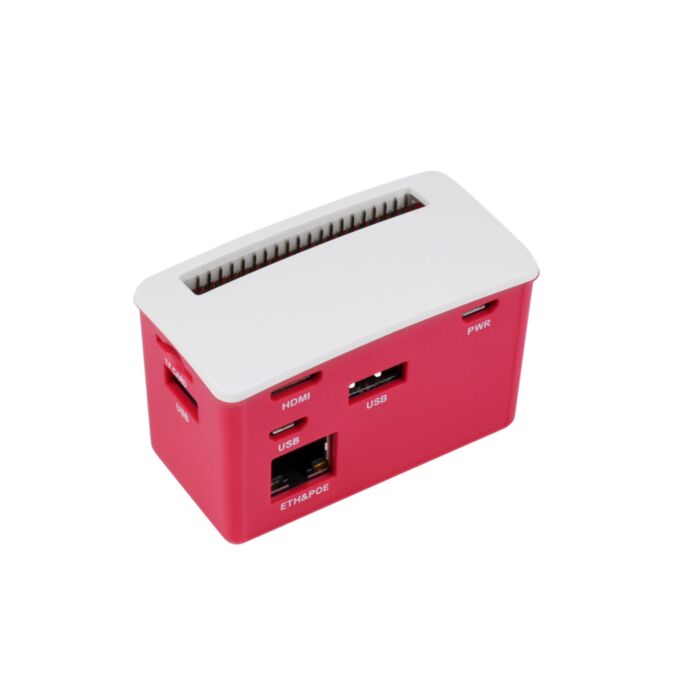

The PoE-ETH-USB-HUB-BOX is a HUB kit with PoE/ETH/USB HUB HAT inside. It is tailored for Raspberry Pi Zero series.
The case is small in size and each cut-out of the case is exactly aligned with the connector. The case adopts classic Raspberry Pi red/white colour combination, and has a pleasing satin surface finish. By using this small HUB BOX and some 802.3af-compliant power sourcing equipment, it is possible to provide both network connection and power supply for your Raspberry Pi Zero in only one Ethernet cable, along with 3x extended USB ports.
Specifications
PoE power input | 37V ~ 57V DC in |
---|---|
Power output | 5V 2.5A DC out |
Network standard | IEEE 802.3af-compliant PoE |
Dimensions | 72.80 × 37.50 × 45.80 mm |
Features
Resources
What's included
