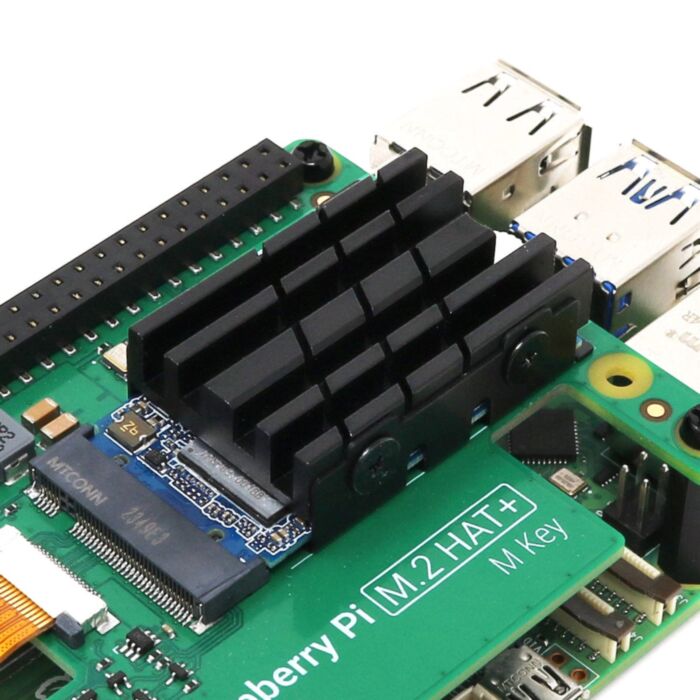

Raspberry Pi M.2 HAT+ Cooling Heatsink
Available with a lead time
Expect dispatch between Dec 30 and Jan 06
The Raspberry Pi M.2 HAT+ Cooling Heatsink is an essential thermal management solution designed for high-performance computing applications. This purpose-built heatsink effectively dissipates heat from 2242 NVMe drives mounted on the Raspberry Pi 5 M.2 HAT, ensuring optimal performance and longevity of storage devices during intensive operations.
Key Features- Precision-engineered heatsink specifically designed for 2242 NVMe drives
- Innovative cradle mounting system for secure installation
- Premium thermal padding included for optimal heat transfer
- Robust black anodized aluminium construction with efficient cooling fins
- Compatible with most 2242 NVMe devices
- Complete mounting kit with all necessary hardware
- Form Factor: Compatible with 2242 NVMe drives only
- Mounting System: Secure cradle design with screw fixings
- Construction: Black anodized aluminium with cooling fins
- Thermal Interface: High-quality thermal pad included
- Not Compatible: 2230 NVMe drives and 2230-size Raspberry Pi SSDs
- Apply the thick pink thermal pad to the underside of the main heatsink body
- Attach the thinner grey adhesive pad to the inside of the mounting cradle
- Secure the 2242 NVMe device to the cradle, ensuring the 'D' cut-out remains clear
- Insert the NVMe device into the HAT
- Secure the device using the thumb screw
- Align and attach the main heatsink body, ensuring the 'D' cut-out aligns with the cradle
- Install the four securing screws to complete assembly
- 1x 2242 Heatsink for Raspberry Pi M.2 HAT+
- 1x Mounting cradle
- 1x Set of thermal and adhesive pads
- 1x Complete fixing kit
- 1x Lime green screwdriver
- Compatible with Raspberry Pi M.2 HAT+
- Works with all standard 2242 NVMe drives
- Designed for use with Raspberry Pi 5 systems
- Can be integrated with Raspberry Pi 5 NVMe SSD Kit configurations
