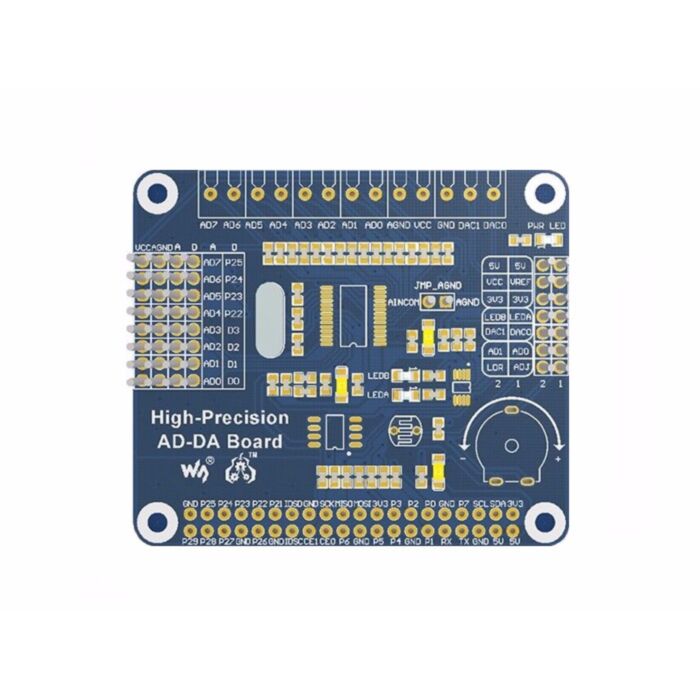

Raspberry Pi High-Precision AD/DA Board (Seeed Studio)

SKU: SS114990831 Brand: Seeed Studio
There's no AD/DA function on the Raspberry Pi GPIO interface, this may trouble you in the Pi development. However, it won't be a problem anymore. The High-Precision...
$114.95 AUD, inc GST
$104.50 AUD, exc GST

Quantity Discounts:

  • 5-10 $100.32 (exc GST)
  • 10+ $97.18 (exc GST)

Out of Stock

Sign up to get notified when it's available to order.

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.


There's no AD/DA function on the Raspberry Pi GPIO interface, this may trouble you in the Pi development. However, it won't be a problem anymore. The High-Precision AD/DA Board allows you to add high-precision AD/DA functions to the Raspberry Pi.


Raspberry Pi 1 Model A+

Raspberry Pi 1 Model B+

Raspberry Pi 2 Model B

Raspberry Pi 3 Model B


  • Onboard ADS1256, 8ch 24bit high-precision ADC (4ch differential input), 30ksps sampling rate

  • Onboard DAC8532, 2ch 16bit high-precision DAC

  • Onboard input interface via pinheaders, for connecting analog signal, the pinout is compatible with Waveshare sensor interface standard, easy to connect various analog sensor modules

  • Onboard input/output interface via screw terminals, for connecting analog/digital signal

  • Features AD/DA detect circuit, easy for signal demonstration



1.Raspberry Pi GPIO interface: for connecting with the Pi

2.AD/DA input/output: screw terminals

3.AD input: pinheaders, the pinout is compatible with Waveshare sensor interface standard, easy to connect various analog sensor modules

4.7.68M crystal

5.LM285-2.5: provides reference voltage for the ADC chip

6.Photo resistor

7.LED output indicator

8.10K potentiometer

9.DAC8532: 16bit high-precision DAC, 2ch

10.Power indicator

11.ADS1256: 24bit high-precision ADC, 8ch (4ch differential input)

12.ADC testing jumper

13.DAC testing jumper

14.Power selection jumper

15.ADC reference ground configuration: when AD single inputted, the AINCOM is reference terminal, can be connected to GND or external reference voltage


SymbolPinDescription
3.3V1, 17Power supply (3.3V)
5V2, 4Power supply (5V)
NC3, 5, 7, 8, 10, 18, 22, 24, 26, 27, 28, 29, 32, 36, 38, 40NC
GND6, 9, 14, 20, 25, 30, 34, 39Ground
DRDY11ADS1256 data ready output, low active
RESET12ADS1256 reset input
PDWN13ADS1256 sync/power off input, low active
CS015

ADS1256 chip select, low active

CS116

DAC8532 chip select, low active

DIN19SPI data input
DOUT21SPI data output
SCK23SPI clock
GPIO31, 33, 35, 37extend to sensor interface




Raspberry Pi High-Precision AD/DA Board*1
