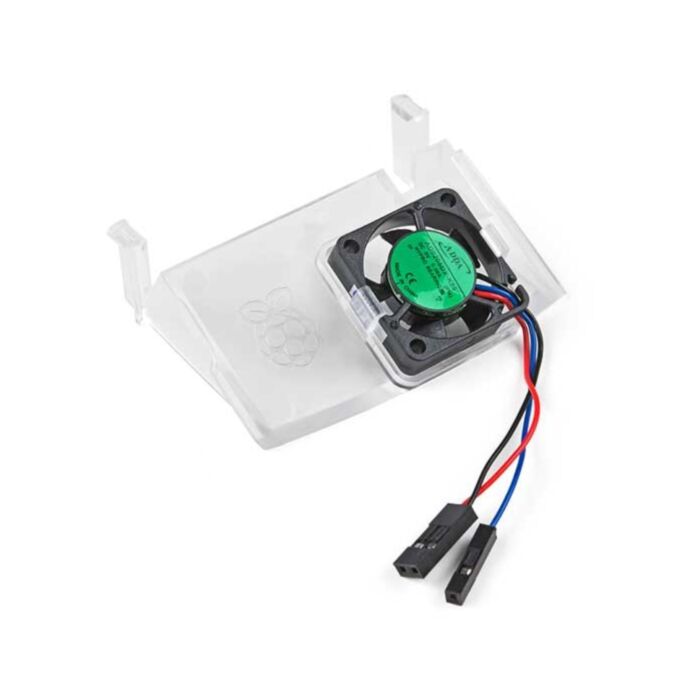

Raspberry Pi 4 Case Fan

Raspberry Pi has designed their new case fan to keep your Pi cool. Simply install into your Raspberry Pi 4 case (sold separately), and you now have active cooling!

Whether you're a power-hungry overclocker or just want to keep your Pi cool in summer this temperature-controlled fan case will deliver up to 1.4CFM of airflow directly over the processor, memory, and power management IC. All bundled with an 18x18x10mm heatsink to ensure your pi stays cool.

The temperature-controlled fan delivers up to 1.4 CFM of airflow over the processor, memory, and power management IC. The bundled 18mm × 18mm × 10mm heatsink with self-adhesive pad improves heat transfer from the processor.

Features

• Fits perfectly into the lid of the Raspberry Pi 4 Case
• Temperature-controlled fan delivers up to 1.4CFM of air flow over the processor, memory, and power management IC
• 18mm × 18mm × 10mm heatsink with self-adhesive pad improves heat transfer from the processor

Getting Started

Assembling your fan with your case

1. Remove any SD card, then put your Raspberry Pi into the lower half (base) of your case. Take care to align the mounting holes in the corners with the bumps in the case.
2. Insert the fan into the upper half (lid) of the case, with the green label facing away from the lid. Push gently but firmly so that the two tabs on the fan housing click neatly into place inside the tabs on the lid. The slightly curved edge of the housing should be flush with the underside of the lid.
3. If you are fitting the heatsink, remove the backing paper from the self-adhesive pad on the base of the heatsink, position it centrally over the processor, and gently press it into position.
4. Connect the three leads from the fan to the Raspberry Pi's GPIO pins, as shown in the diagram below. Take care to connect each lead to the correct pin.
5. Fit the lid of the case onto the base.

Using your fan

Once you have connected your fan, by default it will be on whenever your Raspberry Pi is running. You can configure it to turn on only when your Raspberry Pi reaches a temperature that you choose.

Using a recent version of Raspberry Pi OS, first update to retrieve any recent changes to the operating system:

1. Open the Terminal, either from the Start menu (click the Raspberry Pi icon in the top left corner) or by pressing Control + Alt + T.
2. Type sudo apt update and then, when the update has finished, type sudo apt full-upgrade.

Then open the Raspberry Pi Configuration tool:

1. Click on the Raspberry Pi icon in the top left corner and select Preferences then Raspberry Pi Configuration.
2. Select the Performance tab.
3. Next to Fan, click Enabled.
4. If you have connected your fan as shown above, the default of 14 for Fan GPIO does not need to be changed.
5. Select the Fan Temperature at which you want your fan to turn on. The default is 80°C, which will stop the Raspberry Pi throttling on difficult tasks without having the fan on all the time.

Specification

• Input voltage: 5V DC supplied via 40-pin GPIO header on Raspberry Pi 4
• Fan speed control: Pulse width modulation control via user-selectable GPIO pin
• Maximum airflow: 1.4 CFM
• Case material: Clear PC

Documents

• Raspberry Pi 4 Case Fan - product brief

Shipping List

• Case fan with mount
• Heatsink
