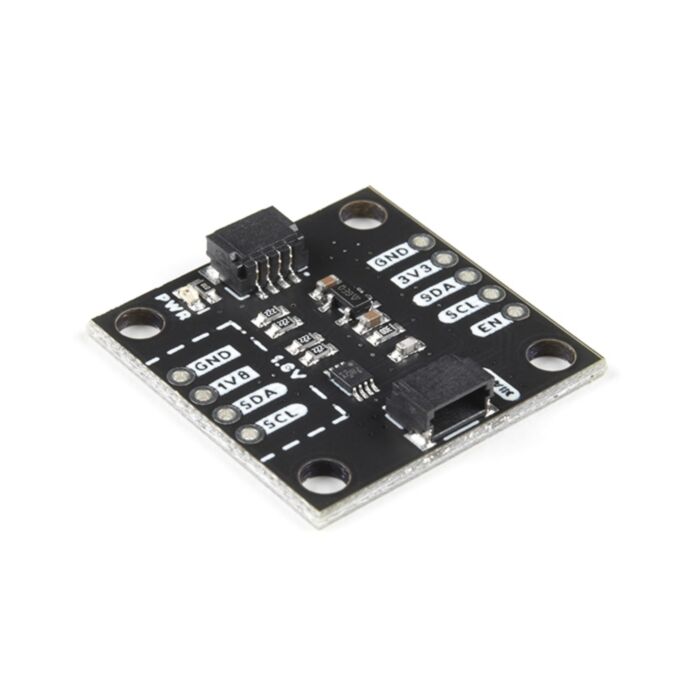

Qwiic 1.8V Adapter

SKU: SPX-19017 Brand: Sparkfun

Our [Qwiic Connect System](https://www.sparkfun.com/qwiic) is designed to help you quickly interface development boards and breakouts in your project or pr...

$13.42 AUD, inc GST

$12.20 AUD, exc GST

Available with a lead time
Expect dispatch between May 13 and May 14

Quantity Discounts:

10+ $12.02 (exc GST)

Our Qwiic Connect System is designed to help you quickly interface development boards and breakouts in your project or prototype. One way the Qwiic system achieves this is by standardizing on a single bus voltage of 3.3 Volts. This means that any Qwiic-compatible board that's based on a 1.8V part has an on-board voltage regulator and logic level translator, but what if you have a 1.8V part with no breakout board and you need to get integrated into your Qwiic project? No worries! This Qwiic 1.8V Adapter supplies 1.8V at up to 300mA as well as bi-directional logic level translation so that you can connect your Qwiic system to any 1.8V I²C part you can find! Simply connect the adapter to your bus using a Qwiic cable, connect your 1.8V part to the header pins marked "1.8V," and now your part is on the 3.3V Qwiic bus! As on other Qwiic boards, we've also broken out the 3.3V pins to a 0.1" header and added two Qwiic connectors, making it easy to connect in line with all of your other Qwiic boards.

The SparkFun Qwiic Connect System is an ecosystem of I²C sensors, actuators, shields and cables that make prototyping faster and less prone to error. All Qwiic-enabled boards use a common 1mm pitch, 4-pin JST connector. This reduces the amount of required PCB space, and polarized connections mean you can’t hook it up wrong.

Experimental Product: SparkX products are rapidly produced to bring you the most cutting edge technology as it becomes available. These products are tested but come with no guarantees. Live technical support is not available for SparkX products. Head on over to our forum for support or to ask a question.

AP2127 LDO Regulator provides 1.8V at 300mA from the Qwiic bus
PCA9306 Bi-Directional level shifter handles I²C logic translation
Power LED verifies the board is connected to Qwiic bus and can be disabled with a solder jumper for low power systems
