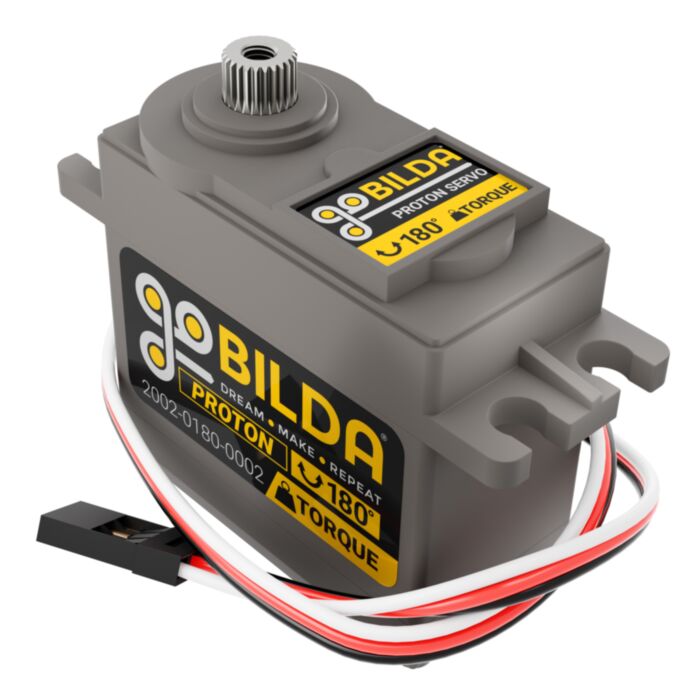

Proton Servo (Steel Gears, 180° Rotation, Torque Ratio)

SKU: GB-2002-0180-0002 Brand: goBilda

The goBILDA® Proton Servo is a standard size servo offering essential servo function on a budget. There are two versions...

$26.75 AUD, inc GST

$24.32 AUD, exc GST

Available with a lead time
Expect dispatch between Dec 30 and Jan 01

Quantity Discounts:

10-25 $23.10 (exc GST)
25+ $21.89 (exc GST)

The goBILDA® Proton Servo is a standard size servo offering essential servo function on a budget. There are two versions of the Proton: ‘Torque’ and ‘Speed’. Though their gear ratios differ, they are identical in every other way. The ‘Torque’ version sacrifices speed to optimize its performance in higher torque applications.

While makers of all levels can appreciate the steel gears that form the Proton’s core, the nucleus of the design is beginner-friendly accessibility! That’s why the Proton’s set of features has been pared-down to the bare essentials:

180° of rotation to turn your ideas into reality
75 oz-in of torque to push your project into innovation
an H25T spline, which you can use to mount all kinds of rotating components found throughout the goBILDA® ecosystem and the wider hobby market

Looking to make your start in robotics, or provide one for someone else? The Proton can be a fantastic first step for implementing servo solutions in novice projects without straining your wallet!

Downloads

STEP File

Specs

Weight	52g
Output Shaft Style	25 Tooth Spline
Voltage Range	4.8V - 6.0V
No-Load Speed (4.8V)	0.21 sec/60° (48RPM)
No-Load Speed (6.0V)	0.19 sec/60° (55RPM)
Stall Torque (4.8V)	65 oz-in (4.68 kg.cm)
Stall Torque (6.0V)	75 oz-in (5.40 kg.cm)
No-Load Current (4.8V)	80mA
No-Load Current (6.0V)	90mA
Stall Current (4.8V)	800mA
Stall Current (6.0V)	1,000mA
Max PWM Range	600-2400µsec
Travel per µsec	0.105°/µsec
Max Rotation	189°
Pulse Amplitude	3-5V
Deadband Width	5µsec
Motor Type	Brushed DC
Feedback Style	5KO Potentiometer
Output Shaft Support	Dual Ball Bearing
Gear Material	Steel
Wire Length	11.81" (300mm)
Wire Gauge	22AWG
Connector Type	3-Pos TJC8 Servo Connector [MH-FC]
Servo Size	Standard
Direction with Increasing PWM Signal	Clockwise

This product is listed in:

goBILDA>MOTION>Servos>Standard Size Servos>Proton Servos
goBILDA>ELECTRONICS>Servos>Standard Size Servos>Proton Servos
