Pololu Universal Aluminum Mounting Hub for 1/4″ Shaft, #4-40 Holes (2-Pack)

SKU: POLOLU-1993 Brand: Pololu

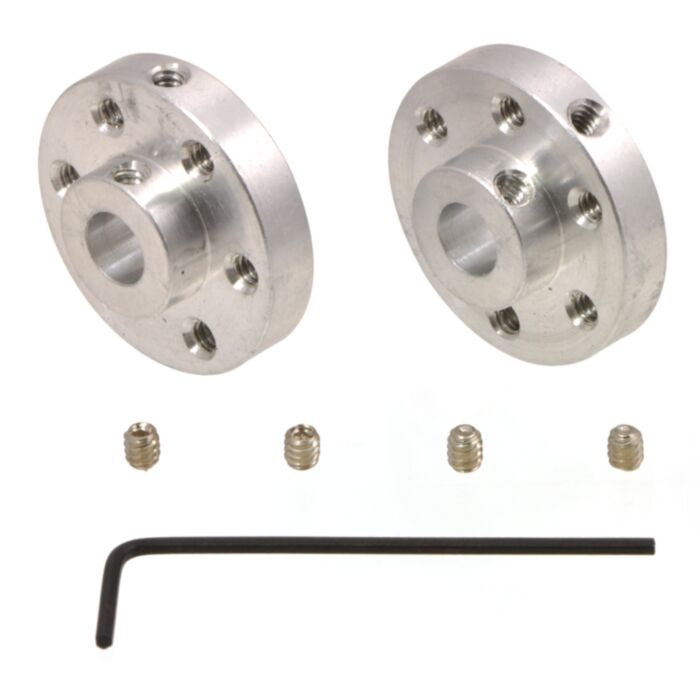

These universal aluminum mounting hubs allow you to mount custom wheels and mechanisms to 1/4 inch diameter motor shafts. The set includes two hubs, four #4-40 set screws for securing the hubs to motor shafts, and one 0.05″ Allen wrench for use with the set screws. Each hub has four threaded mounting holes for #4-40 screws (not included).

$16.25 AUD, inc GST

$14.77 AUD, exc GST

Available with a lead time
Expect dispatch between Nov 18 and Nov 21

Quantity Discounts:

10-25 $14.18 (exc GST)
25+ $13.74 (exc GST)

1/4" Pololu universal aluminum mounting hub on a NEMA 23 stepper motor with 1/4"-diameter output shaft.

These universal mounting hubs are designed to work with most 0.250 inch (6.35 mm) shafts, including round shafts and “D” shafts, such as those on Pololu's NEMA 23 stepper motors. Each of the two included hubs has four mounting holes for #4-40 screws (not included), letting you mount custom wheels or mechanisms to your motors. The four included #4-40 hex set screws (two for each hub) allow secure coupling of shaft to hub, and a 0.05" hex wrench (often the smallest size in SAE Allen wrench sets) is included for use with the set screws. A dimension diagram of the hub is available under the resources tab.

These hubs will work with Pololu's NEMA 23 stepper motors, and they also work with 80 mm and 90 mm Pololu wheels.

Documents:

Dimensional Drawing
