Pololu Stamped Aluminum L-Bracket Pair for Plastic Gearmotors

Rating:

100% of 100

SKU: POLOLU-2670 Brand: Pololu

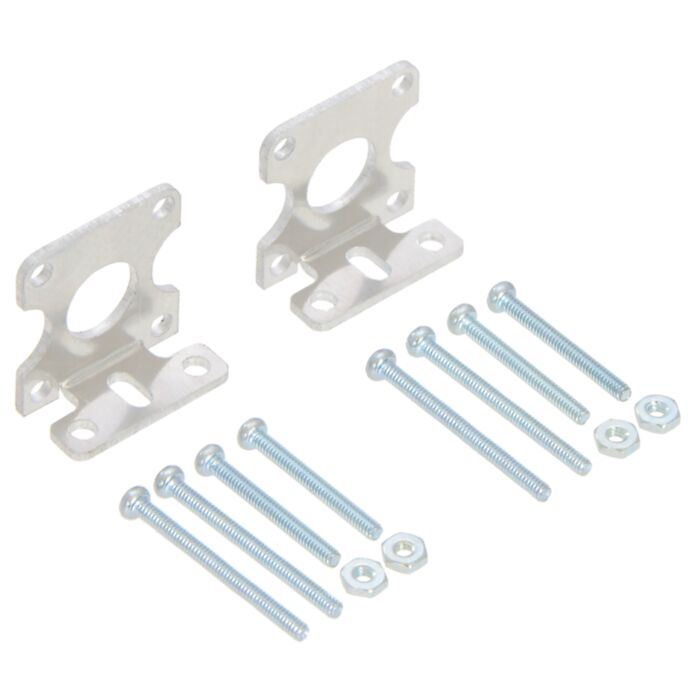

These aluminum gearmotor brackets let you securely mount Pololu's larger Pololu plastic gearmotors (228:1 offset, 120:1 offset, 200:1 90-degree, and 120:1 90-degree) to your project. These brackets are sold in pairs, and each bracket comes with two 1″ long and two 0.75″ long #2-56 screws for securing different size motors. Each bracket also features two mounting holes and one mounting slot intended for #4-size screws (not included).

$8.20 AUD, inc GST

$7.45 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 26th of Nov

Quantity Discounts:

10-25 $7.15 (exc GST)
25+ $6.94 (exc GST)

These light-weight brackets (approximately 2 g each) are specifically designed for Pololu's larger Pololu plastic gearmotors (228:1 offset, 120:1 offset, 200:1 90-degree, and 120:1 90-degree). Each bracket features two mounting holes and one mounting slot intended for #4-size screws (not included). Pololu also offer an extended version of this bracket that allows for even more mounting options and might work better for particular applications.

A total of four 1" long #2-56 screws, for use with the 228:1 offset and 120:1 offset plastic gearmotors, and four 0.75" long #2-56 screws, for use with the 200:1 90-degree and 120:1 90-degree plastic gearmotors, are included. Two #2-56 hex nuts are also included for each bracket. Only two screws are used to mount a motor to each bracket, as shown in the pictures below:

These brackets also work with the Solarbotics plastic gearmotors (GM2, GM3, GM8, and GM9), although different length mounting screws might be required.

The following drawing shows the bracket dimensions in mm.

Mechanical drawing for the Pololu stamped aluminum L-bracket for plastic gearmotors. Units are mm over [inches].

This drawing is also available as a downloadable PDF (125k pdf).

People often buy this product together with:

200:1 Plastic Gearmotor, 90° Output

120:1 Plastic Gearmotor, 90° Output

MinIMU-9 v5 Gyro, Accelerometer, and Compass (LSM6DS33 and LIS3MDL Carrier)

Dimensions

Weight:	2 g¹

Notes:

1: For a single bracket only (no screws or nuts).

File downloads

Pololu stamped aluminum L-bracket for plastic gearmotors mechanical drawing (125k pdf)
3D model of Pololu Stamped Aluminum L-Bracket for Plastic Gearmotors (1MB step)
