0.100" (2.54 mm) Breakaway Male Header: 1×10-Pin, Straight, Black, 25-Pack

SKU: POLOLU-4270 Brand: Pololu
This connector is a 25-pack of 1×10-pin, straight male header strips. The strips have a standard-color (black) plastic base...
$6.20 AUD, inc GST
$5.64 AUD, exc GST

Available with a lead time
Expect dispatch between Jul 07 and Jul 08

Quantity Discounts:

  • 10+ $5.41 (exc GST)
  • 25+ $5.25 (exc GST)
- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

These header strips have a 0.1" (2.54 mm) pitch and are commonly used as low-cost connectors. The standard spacing allows use with solderless breadboards, perforated prototyping PCBs, female headers, and Pololu's premium and pre-crimped jumper wires. The single-row header strips can easily be snapped into smaller strips to fit your application. The double- and triple-row strips can also be broken into smaller strips, but it takes a little more effort, and it is sometimes easier to use wire/diagonal cutters.

Details for item #4270

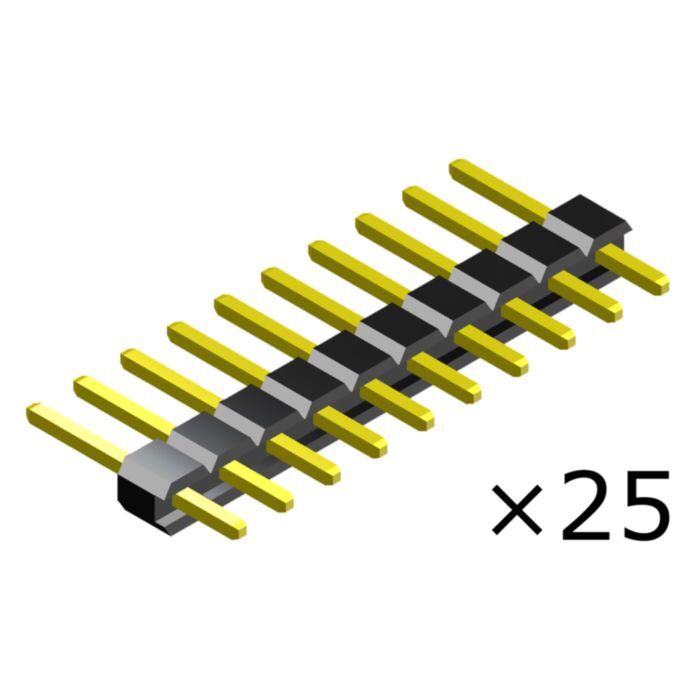

0.100" (2.54 mm) Breakaway Male Header: 1×10-Pin, Straight, Black, 25-Pack.

Dimension diagram of 0.100" (2.54 mm) breakaway male header, straight, single-row.

This connector is a 25-pack of 1×10-pin, straight male header strips. The strips have a standard-color (black) plastic base.

All available breakaway header options

Straight, Single-Row:

Dimension diagram of 0.100" (2.54 mm) breakaway male header, straight, single-row.

Straight
Item #PinsPack
Quantity
Color
42621×2100black
42631×3100
42641×450
42651×550
42661×650
42671×750
42681×850
42691×925
42701×1025
42711×1125
42721×1225
42761×1625
9651×401
26651×401red
26661×401yellow
26671×401blue
26641×401white

1×40-Pin, Straight.

Straight, Double-Sided, 1×40:

Both sides of this strip are long, allowing for unique connections that cannot be made with standard male header strips. For example, this header can be used as a female-to-male adapter, and both sides are compatible with wire wrap. This version is only available as an individual, 1×40 strip that can be cut or broken into smaller strips.

Dimension diagram of 0.100" (2.54 mm) breakaway male header, straight, double-sided, single-row.

Straight, 2×40:

Dimension diagram of 0.100" (2.54 mm) breakaway male header, straight, double-row.

Right-Angle, Single-Row:

Dimension diagram of 0.100" (2.54 mm) breakaway male header, right-angle, single-row.

Right-Angle
Item #PinsPack
Quantity
Color
43621×2100black
43631×3100
43641×450
43651×550
43661×650
43671×750
43681×850
43691×925
43701×1025
43711×1125
43721×1225
43761×1625
9651×401

Right-Angle, 2×40:

Dimension diagram of 0.100" (2.54 mm) breakaway male header, right-angle, double-row.

Right-Angle, 3×40:

Dimension diagram of 0.100" (2.54 mm) breakaway male header, right-angle, triple-row.


Dimensions

Pins: 1 × 10
Spacing: 0.100 in

General specifications

Gender: male
Pin type: straight
Current rating: 3 A
Color: black
Material: PBT UL94V-0 plastic base, brass pins with gold-flash
