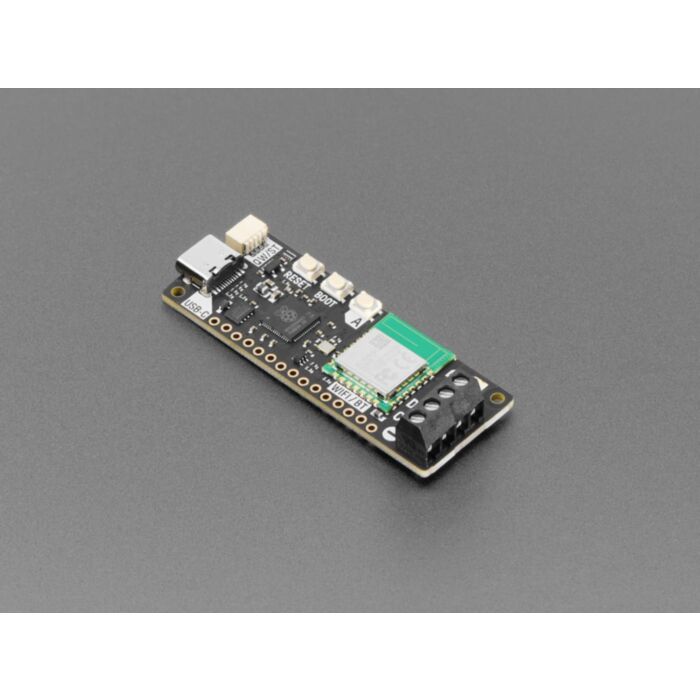

Pimoroni Plasma 2350 W - Wireless RP2350 LED Driver - PIM729

SKU: ADA6246 Brand: Adafruit
The Pimoroni Plasma 2350 W is an all-in-one, USB-C powered controller for WS2812 (a.k.a NeoPixel) and APA102 (a.k.a DotStar) addressable LED strips. Now...
Special Price $39.06 AUD, inc GST
Regular Price $51.83 AUD, inc GST
$35.51 AUD, exc GST
Special pricing ends 14 July 2025
* this special may end earlier than shown

Out of Stock

Sign up to get notified when it's available to order.

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

The Pimoroni Plasma 2350 W is an all-in-one, USB-C powered controller for WS2812 (a.k.a NeoPixel) and APA102 (a.k.a DotStar) addressable LED strips. Now with added wireless connectivity! It's got the beefy power of an RP2350-based Pico 2, with the same module that is on the 2W for Bluetooth & WiFi support.

Plasma 2350 W is powered and programmable by USB-C, and because USB-C is capable of drawing up to 3A of power, that's enough to power a healthy chunk of LEDs. There's a useful button that you could use to switch between effects, plus a reset button and an onboard RGB LED. Pimoroni also popped a QW/ST connector on there to make it super easy to plug in I2C-based Qwiic or STEMMA QT breakouts.

This version comes equipped with a Raspberry Pi RM2 module, which gives it 2.4 GHz wireless and Bluetooth connectivity. Use it to control Plasma 2350 W remotely, hook it up to online APIs, or integrate it with your home automation.

Features:

  • Powered by RP2350A (Dual Arm Cortex M33 running at up to 150MHz with 520KB of SRAM)
  • 4MB of QSPI flash supporting XiP
  • Compatible with 5V WS2812/Neopixel/SK6812 and APA102/Dotstar/SK9822 LEDs
  • Screw terminals for attaching your LED strip.
  • USB-C connector for power and programming (5V 3A max)
  • Raspberry Pi RM2 module (CYW43439), supporting IEEE 802.11 b/g/n wireless LAN, and Bluetooth
  • Qw/ST (Qwiic/STEMMA QT) connector
  • Reset, BOOT, and a user button (the BOOT button can also be used as a user button)
  • RGB LED
  • Fully assembled (no soldering required)
  • Measurements: approx 61 x 22 x 12mm (L x W x H, including connectors)
  • Programmable with C/C++ or MicroPython
