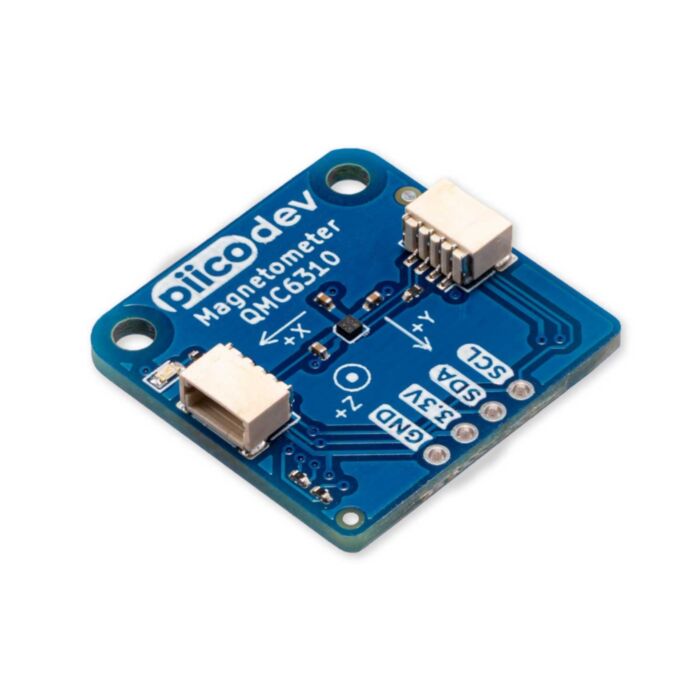

PiicoDev Magnetometer QMC6310

Rating:
100% of 100
SKU: CE07937 Brand: PiicoDev Guides (6)
CE Original
Measures invisible magnetic fields - use as a compass or to detect nearby magnets.
$4.40 AUD, inc GST
$4.00 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Mon, 22nd of Apr

Quantity Discounts:

  • 4-12 $3.60 (exc GST)
  • 12+ $3.40 (exc GST)
  • 50+ $2.60 (exc GST)
- +

243 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

The PiicoDev® Magnetometer measures invisible magnetic fields. It's sensitive enough to use as a compass and wide-range enough for detecting magnets - which have a much stronger field. The on-board QMC6310 can measure 16-bits in ranges from 200μT to 3000μT in all 3 axes. By using PiicoDev adapters and cables, you can connect to this sensor without soldering - or use the standard breakout header if you prefer breadboard prototyping. Whichever you prefer, the PiicoDev guides will guide you through exciting experiments like measuring the Earth's magnetic field to find a heading and detecting if a magnet is nearby.

Features

  • Small size, high accuracy
  • Measures magnetic fields in 3-axes
  • Sensitive enough to use like a compass, broad range enough to work with nearby magnets
  • Great guides to get you started
  • PiicoDev connector, compatible with Qwiic and STEMMA QT (3.3V only)
  • 2.54mm breakout for breadboarding/prototyping
  • Manufactured and supported in Australia by Core Electronics

Getting Started Guides

Technical Specifications

  • Address: 0x1C
  • 3-axis, 16-bit precision per channel
  • Dimensions: 25.4x25.4mm
  • Mounting Holes: 2x M2.5

Resources

Also available are PiicoDev Starter Kits - level up your projects by learning how to use a wide range of modern sensors and outputs.

PiicoDev Magnetometer QMC6310 Module

PiicoDev Overview

PiicoDev is a ecosystem designed for rapid prototyping and maker education. The range includes:

Here are some of the features we have baked into PiicoDev:

  • Unified MicroPython libraries. The same MicroPython code examples will work on all supported platforms.
  • Simple-and-expandable connections. Modules can be connected using a 4-pin connector and daisy-chained to expand projects.
  • Breakout pins. Every module has a breakout section for optional advanced uses.
  • Consistent size. We have taken care to ensure modules are consistent sizes so that they easy for 3D printing cases, stacking and experimenting with.
  • Creative freedom. Simmer all of these features together and you end up with lots of creative freedom while still being a hands-on electronics experience.

PiicoDev electronics modules are designed and manufactured in Newcastle. They are priced for makers and education alike (affordable!). Get in touch with us if you have any questions.
