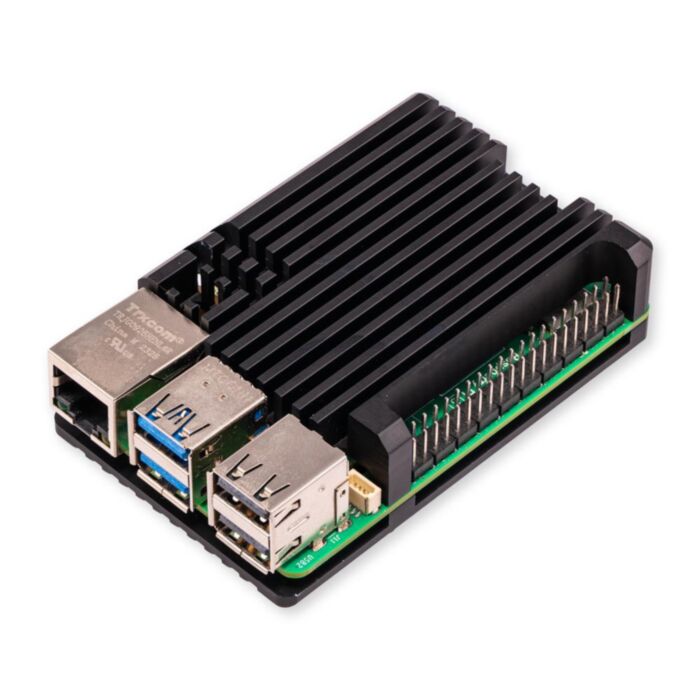

Aluminium Heatsink Case for Raspberry Pi 5 (Passive Cooling, Silent)
Add protection and (silent) cooling to your Raspberry Pi 5 at the same time.
In stock, ships same business day if ordered before 2PM
Fastest delivery: Tomorrow*
Disclaimer:
For next-day delivery, the shipping address must
be in the AusPost next-day network, eParcel Express must be selected, and the order must be placed
before 2PM AEST Mon-Thurs excluding NSW Public Holidays. Orders may be delayed due to AusPost
pickup timings and order verifications. eParcel Express is typically a 1-day service within the
AusPost next-day network, though it is sometimes 2+ days.
Give your Raspberry Pi 5 the silent, rock-solid protection it deserves. Machined from aluminium, this two-part enclosure turns the entire case into a heatsink with much more surface area than just the chips, pulling heat straight off the CPU (and other hot-spots) without a single moving part.
A dual-fan and single-fan edition is also available for those who like their Pi actively cooled.
What’s in the box?
-
CNC-milled aluminium top & bottom shell – tough, lightweight
-
Deep cooling fins – maximise surface area for increased passive heat dissipation
-
Pre-cut thermal pads – create a direct thermal bridge from the Pi 5’s CPU (and RAM if you wish) to the case
-
Hex bolts + hex key – for quick, secure assembly
-
Full access to every port, pin-header and connector on the Raspberry Pi 5
-
Compatible with Raspberry Pi 5 only
Assembly (5 minutes, tool included)
-
Power down & unplug your Pi 5.
-
Apply thermal pad: peel both films and place the pad on the CPU. Add a second pad on the RAM and other ICs if you’d like extra coverage.
-
Sandwich the board: align the top shell (fins up) over the CPU, position the bottom shell beneath the board, and hold together.
-
Bolt it up with the supplied hex screws.
Using HATs & add-ons
Because the case hugs the Pi, standard HATs will need 2×20 header extenders or a ribbon cable to clear the case.
Good-to-know
-
The enclosure conducts heat and electricity – watch for accidental shorts when wiring up external circuits.
-
The case will feel warm in use; that’s normal and why you’re unlikely to ever hit a Pi 5 “over-temperature” warning.
-
Dimensions: 87 × 56 × 25 mm (excluding port overhangs).
