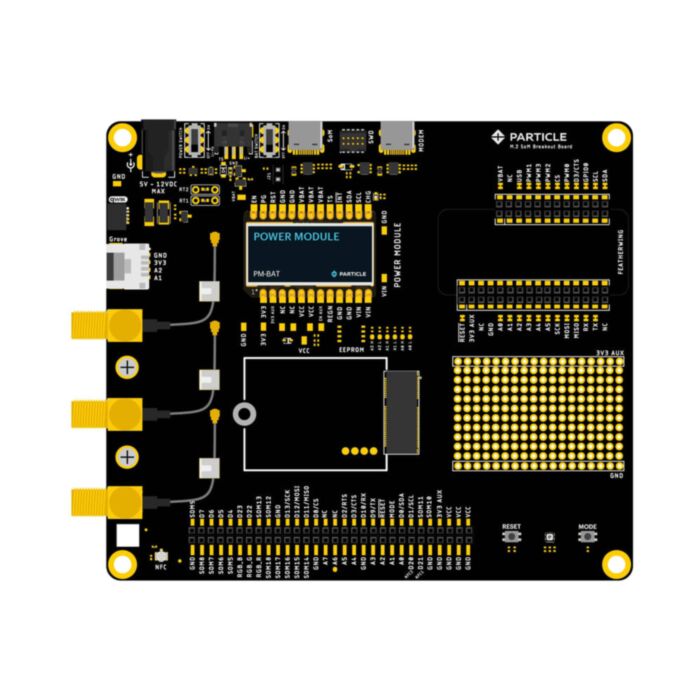

Particle M.2 Maker Breakout Board Kit

SKU: CE10044 Brand: Particle

Explore Particle's M.2 Maker Breakout Board Kit, a versatile development tool featuring Grove, Qwiic, and FeatherWing connectivity for rapid prototyping with B-SoMs & M-SoMs, complete with GPIO, I2C, UART, and SPI interfaces.

$88.20 AUD, inc GST

$80.18 AUD, exc GST

Quantity Discounts:

6-12 $77.77 (exc GST)
12+ $76.17 (exc GST)

Out of Stock

Transform your Particle M.2 form factor development projects with the M.2 Maker Breakout Board Kit, a comprehensive solution that bridges the gap between rapid prototyping and professional development. This versatile board streamlines the integration process by providing accessible breakout points and multiple connectivity options for seamless component interfacing.

Key Features

Universal connectivity through Grove, Qwiic, and FeatherWing headers for rapid sensor and peripheral integration
Comprehensive interface support including GPIO, I2C, UART, and SPI
Clear pin labeling system for intuitive development
Integrated mini protoboard area for custom circuit modifications
Full compatibility with Particle's B-SoMs & M-SoMs
Replaces the previous M.2 Evaluation Board with enhanced capabilities

How to Use

Integration is straightforward with the M.2 Maker Breakout Board Kit:

Mount your Particle B-SoM or M-SoM using the provided M.2 thumbscrews
Connect power through either the included battery module or DC power module
Interface with external components via the Grove, Qwiic, or FeatherWing connectors
Utilize the clear pin labeling to establish necessary connections for your specific application
Power the system using the included USB-C cable or AC/DC power supply

What's in the Box

M.2 Breakout PCBA
Battery Power Module with headers
DC Power Module with headers
Single cell 18650 battery
USB A-to-C Cable
AC/DC power supply (North America, UK, and EU compatible)
3x M.2 Thumbscrews

Compatibility

The M.2 Maker Breakout Board is designed to work with:

All Particle B-SoMs
All Particle M-SoMs

Important Note: The SoM is not included with this kit and must be purchased separately. The predecessor M.2 Evaluation Board (M2EVAL) is not compatible with M-SoMs due to power requirements.

Additional Resources

Complete Technical Documentation

About Particle

Particle is a leading provider of IoT development platforms, known for creating professional-grade hardware solutions that bridge the gap between prototyping and production. Their products are designed to accelerate development cycles while maintaining industrial reliability standards, making them a trusted choice for both educational institutions and professional developers.

This product is listed in:

Development Boards>Kits
Kits>Maker Kits
