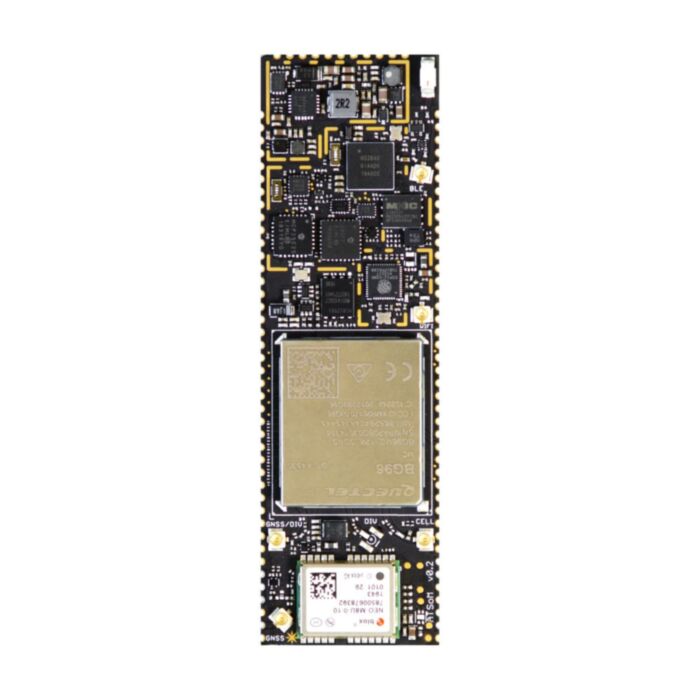

Particle IoT Tracking Module - LTE-M North America

SKU: CE010040 Brand: Particle
Explore Particle's T SoM LTE-M IoT tracking module featuring advanced GNSS, CAN Bus integration, and Nordic nRF52840 MCU - perfect for building sophisticated asset tracking solutions in North America with free platform access for up to 100 devices.
$239.95 AUD, inc GST
$218.14 AUD, exc GST

Available with a lead time
Expect dispatch between Nov 28 and Dec 02

Quantity Discounts:

  • 5-10 $211.59 (exc GST)
  • 10+ $207.23 (exc GST)

Restrictions apply to this RF Equipment for use in Australia:

  • Only to be operated on 433Mhz / 915-930Mhz / 2.4Ghz  (check the product description for compatible frequency ranges).
  • If operating outside of shared frequencies or in such a way that is beyond low interference potential devices are intended to function, then you have obtained the appropriate authorisation to do so.

For use in other locations around the world:

  • Follow region-specific frequency spectrum rules.

A declaration of use will need to be submitted during checkout.

- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

The Particle T SoM LTE-M IoT tracking module delivers advanced asset tracking capabilities through seamless integration of GNSS positioning, CAN Bus connectivity, and the powerful Nordic nRF52840 MCU. This sophisticated System-on-Module forms the foundation for developing comprehensive tracking solutions while providing immediate platform access for up to 100 devices.

Key Features

  • LTE-M connectivity optimised for North America with 50% improved power efficiency compared to 3G
  • High-precision GNSS positioning with u-blox eo M8U dead-reckoning (1.8m CEP50 accuracy)
  • Nordic Semiconductor nRF52840 SoC featuring 64MHz ARM Cortex-M4F processor
  • Integrated CAN Bus controller and transceiver for vehicle integration
  • 8MB Flash storage with POSIX file system for data logging
  • Built-in power management with LiPo charging capabilities
  • Wi-Fi location services via onboard ESP32

Technical Specifications

  • Processor: Nordic nRF52840 with 1MB flash, 256KB RAM
  • Cellular: Quectel BG96 LTE-M module with Power Save Mode and eDRX
  • Positioning: u-blox eo M8U GNSS + Wi-Fi positioning
  • Interfaces: 1x SPI, 1x I2C, 1x UART, up to 6x GPIO
  • Power Features: Integrated PMIC, fuel gauge, and battery management
  • Form Factor: Castellated edge design for reliable manufacturing

Installation

Implementation begins with connecting the module to your custom carrier board via the castellated edge connections. The design requires pairing with appropriate antennas - the ANTCW2TY antenna is recommended for optimal performance. For development purposes, the module can be integrated with the Particle M-SoM Dual WiFi/Cellular IoT Module development board to accelerate prototyping.

What's in the Box

  • 1x Particle T SoM LTE-M North America module
  • Documentation for integration and setup

Compatibility

  • North American LTE-M networks
  • Particle Device Cloud platform
  • Standard 3.7V LiPo batteries
  • CAN Bus enabled vehicles and machinery

Additional Resources

  • Comprehensive technical documentation via Particle's documentation portal
  • Detailed datasheet with pinouts and electrical specifications
  • Integration guides and example applications

About Particle

Particle is a leading provider of professional-grade IoT solutions, specialising in enterprise-level hardware and cloud platforms. Their comprehensive ecosystem supports the entire development journey from prototype to production, making them a trusted partner in IoT innovation. With a focus on reliability, security, and scalability, Particle's solutions are deployed across various industries including asset tracking, fleet management, and industrial monitoring.
