Panel Mount Extension USB Cable - Mini B Male to Mini B Female

Rating:
100% of 100
SKU: ADA3318 Brand: Adafruit
Check out this handy USB extension cable, which will make it easy for you to enclose a device that has a Mini-B USB type port. We think this would be most handy...
$11.35 AUD, inc GST
$10.32 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Mon, 1st of Apr

Quantity Discounts:

  • 10-25 $9.91 (exc GST)
  • 25+ $9.60 (exc GST)
- +

2 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Favourite product

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Check out this handy USB extension cable, which will make it easy for you to enclose a device that has a Mini-B USB type port. We think this would be most handy when putting a Teensy, FTDI friend, USB LiPo charger, BeagleBone, or any other Mini-B device into a box!

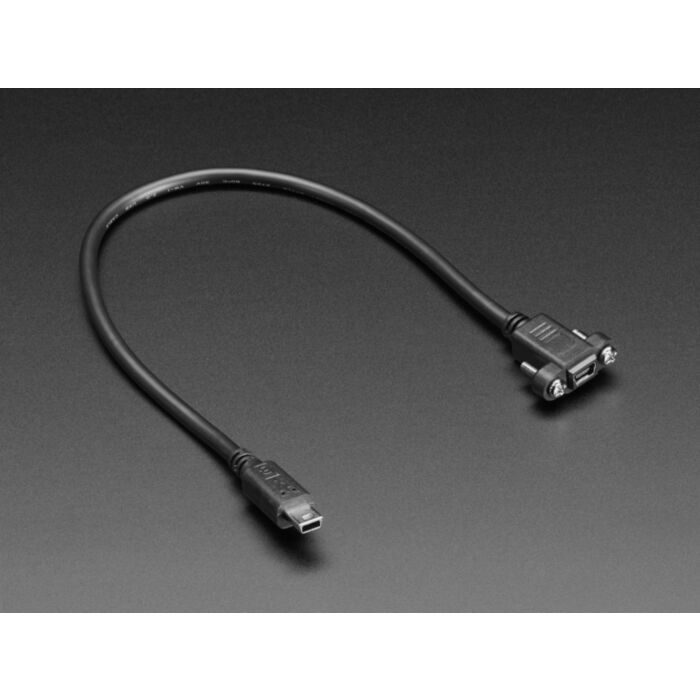

This Mini-B male/female extension cable features a male USB Mini-B plug on one end, and a bulkhead mountable Mini-B female receptacle on the other. The jack half has two mounting 'ears' with 4-40 screws installed, about 17mm apart. The ears are flexible so the holes don't have to be drilled very precisely. The screws can be put on from the back for 'reverse' mounting if the box thickness is a problem. The entire unit is about 12" long from tip to tip (with approx 10" cabling between connectors).

Rated for high-speed USB 2.0 use.

Features:

  • Embedded 4-40 screws (no threading required)
  • Mounting screws included
  • Wired straight through
  • USB 2.0 compatible

Technical Details

Cable length end-to-end: 12.3" (313mm)

Screw length: 14mm, 4-40 type

Screw head diameter: 5mm

This product is listed in:

Cables>USB
Connectors & Sockets>USB
