Panel Mount 100K potentiometer (Breadboard Friendly) - 100K Linear

SKU: ADA1831

$1.95 AUD, inc GST
$1.77 AUD, exc GST
Panel Mount 100K potentiometer (Breadboard Friendly) - 100K Linear
1.95 AUD

SKU: ADA1831

$1.95 AUD, inc GST
$1.77 AUD, exc GST
In stock, with a short lead time. 142 units dispatch in 4 to 7 days (in addition to the shipping method you choose). Our timing and stock is accurate. Delivery to you by Wed, 1st of Nov with Express Post within Australia.

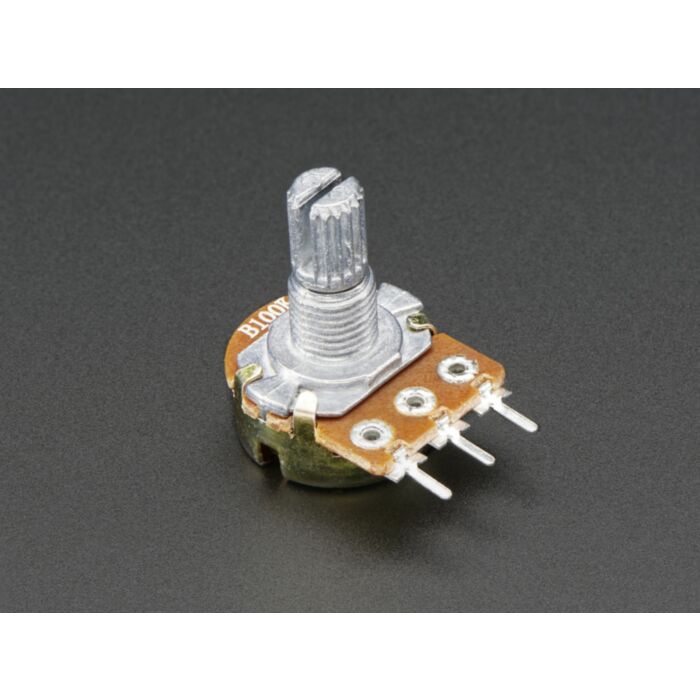

This potentiometer is a two-in-one, good in a breadboard or with a panel. It's a fairly standard linear taper 100K ohm potentiometer, with a grippy shaft. It's smooth and easy to turn, but not so loose that it will shift on its own. Adafruit like this one because the legs are 0.2" apart with pin-points, so you can plug it into a breadboard or perfboard. Once you're done prototyping, you can drill a hole into your project box and mount the potentiometer that way.

Technical Details

Dimensions:

  • Body: 16mm / 0.6"
  • Body Circumference: 50mm / 2"
  • Shaft Length: 15mm / 0.6"
  • Weight: 6g
  • 100K ohm potentiometer, linear taper
  • 100,000 Cycle Life
  • Rotational travel: 300 °
  • Static Stop Strength: 90 oz-in
  • Rotational Torque: 0.5 to 1.25 oz-in
  • P160KN-0QC15B100K Datasheet
Documentation and Resources:
