Outdoor Laser Ranging Module (15m)

Skip to the beginning of the images gallery

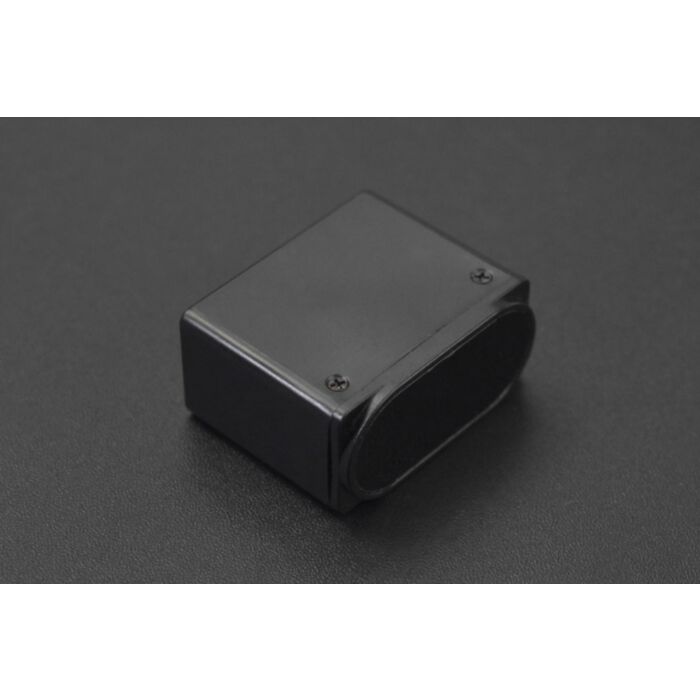

Outdoor Laser Ranging Module (15m)

SKU: SEN0524 Brand: DFRobot

This is a ToF-based single-point laser ranging sensor for outdoor use. It has 100K LUX resistance to strong ambient light and supports UART/I2C output...

$74.80 AUD, inc GST

$68.00 AUD, exc GST

Available with a lead time
Expect dispatch between Feb 19 and Feb 24

Quantity Discounts:

6-12 $65.28 (exc GST)
12+ $63.24 (exc GST)

This equipment uses a laser and has the following restrictions:

the equipment is not intended for sale to the general public
the equipment is intended to be used in trades, professions or industries
the domestic or international prototype/product this equipment is to be used in will comply with relevant laws
the end-user of this equipment is licensed and trained to safely work with lasers

A declaration of use will need to be submitted during checkout.

This is a ToF-based single-point laser ranging sensor for outdoor use. It has 100K LUX resistance to strong ambient light, which means there will be no problems at all when using it on sunny days.

Outdoor Laser Ranging Module (15m)

With a detection range of 5cm~15m, the product features distance resolution 1mm, 50Hz data update frequency, 1~2° FOV, and supports UART, I2C, and I/O multiple communication modes(support active and query output data in UART mode).

Outdoor Laser Ranging Module (15m)

Small in size, there are standard screw holes reserved on the side and bottom of the module, which is convenient for installation in various places. It can be widely used in the fields of drone height setting, route planning, smart car competition and transportation, industrial automation, high-speed measurement, safety monitoring, etc.

Outdoor Laser Ranging Module (15m)

Features

100K LUX resistance to strong ambient light

Supports UART, I2C, and I/O multiple communication modes

Convenient for installation

Applications

Drone height setting

Route planning

Smart car competition and transportation

Industrial automation

High-speed measurement and safety monitoring

Specification

Measuring Range: 5cm~15m

Measurement Resolution: 1mm

Ranging Accuracy: [0. 05m, 2m]±2cm, std<0. 5cm; (2m, 15m]±2%, std<8cm

Field of View (FOV): 1~2°

Output Mode: UART, I2C, I/O (support active and query output in UART mode)

Refresh Rate: 50Hz

I2C Default Slave Address: 0x08

Wavelength: 750~830nm

Anti-Ambient Light: 100K Lux

Power Supply Voltage: 3.7~5.2V, reverse connection protection

Power Consumption: 610mW

Working Temperature: -10~60°C

Size: 22.7*28*13.6mm / 0.89*1.10*0.54 inch

Weight: 7.7g

Documents

Product wiki

Parts List

Outdoor Laser Ranging Module(15m) x1

GH1.25 4P Adapter Cable x1

Screws x2
