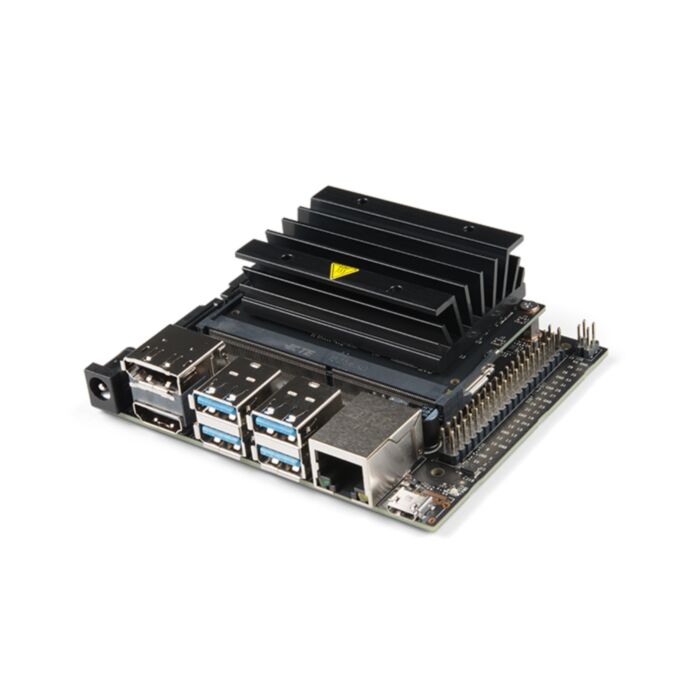

NVIDIA Jetson Nano Developer Kit (V3)

SKU: DEV-16271 Brand: Sparkfun

Retired Product

Replaced by: DEV-22098

This product has been replaced by: DEV-22098
This product is no longer available. This page is only for reference.

Cue theme music..."Meet NVIDIA Jetson!" The latest addition the Jetson family, the NVIDIA® Jetson Nano™ Developer Kit (V3) delivers the performance to run modern AI workloads in a small form factor, power-efficient (consuming as little as 5 Watts), and low cost. Developers, learners, and makers can run AI frameworks and models for applications like image classification, object detection, segmentation, and speech processing. The developer kit can be powered by micro-USB and comes with extensive I/Os, ranging from GPIO to CSI. This makes it simple for developers to connect a diverse set of new sensors to enable a variety of AI applications. This version of the Jetson Nano Developer Kit comes equipped with two MIPI-CSI camera connectors which enables algorithms that perform stereo vision! We at SparkFun see this as more than enough potential to be yelling "Stop this crazy thing" to your friends & family!

Jetson Nano is also supported by NVIDIA JetPack™, which includes a board support package (BSP), Linux OS, NVIDIA CUDA®, cuDNN, and TensorRT™ software libraries for deep learning, computer vision, GPU computing, multimedia processing, and much more. The software is even available using an easy-to-flash SD card image, making it fast and easy to get started.

The same JetPack SDK is used across the entire NVIDIA Jetson family of products and is fully compatible with NVIDIA’s AI platform for training and deploying AI software. This proven software stack reduces complexity and overall effort for developers.

Features

GPU 128-core Maxwell™ GPU
CPU Quad-core ARM A57
Memory 4 GB 64-bit LPDDR4 | 25.6 GB/s
10/100/1000BASE-T Ethernet
Storage microSD (not included)
Video Encode 4Kp30| 4x 1080p30| 9x 720p30 (H.264/H.265)
Video Decoder4Kp60| 2x 4Kp30| 8x 1080p30| 18x 720p30| (H.264/H.265)
Supports Micro-USB 5V 2A
Supports DC power adapter 5V 4A
USB 3.0 Type A
USB 2.0 Micro-B
HDMI/DisplayPort
M.2 Key E
Gigabit Ethernet
GPIOs, I2C, I2S, SPI, UART
2x MIPI-CSI camera connectors (for stereo vision)
Fan connector
PoE connector
Dimensions: 100mm x 80mm x 29mm

Documents

Includes

NVIDIA Jetson module and reference carrier board
Small paper card with quick start and support information
Folded paper stand

Items not Included you’ll also need:

microSD card (32GB UHS-1 minimum recommended)
USB keyboard and mouse
Computer display (HDMI or DP)
Micro-USB or DC barrel jack power supply with at least 5V⎓2A at the jack.
