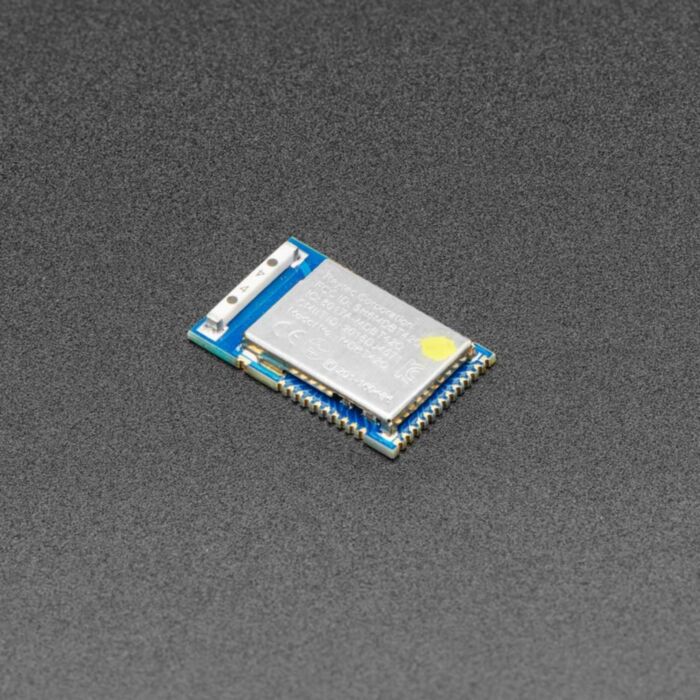

nRF52832 Bluetooth Low Energy Module - MDBT42Q-512KV2

SKU: ADA4077 Brand: Adafruit

If you have a custom PCB design and you'd like to add a little Bluetooth Low Energy, this module is ultra compact and easy to use. It contains a Nordic nRF52832...

$20.50 AUD, inc GST

$18.64 AUD, exc GST

Available with a lead time
Expect dispatch between Apr 26 and Apr 29

Quantity Discounts:

10-25 $17.89 (exc GST)
25+ $17.34 (exc GST)

If you have a custom PCB design and you'd like to add a little Bluetooth Low Energy, this module is ultra compact and easy to use. It contains a Nordic nRF52832 chip that comes integrated with BLE radio as well as most of the supporting circuitry and even a chip antenna. The whole thing comes with FCC, CE and TELEC certifications.

Please note! The module comes with a blank chip - this is for people who are comfortable programming the chips themselves with a J-Link programmer and the Nordic SDK. We don't provide any firmware to go along with it!

This is the same module Adafruit use for the Adafruit nRF52832 Feather so if you'd like to see a possible reference design for this module, check out the PCB files here!

Of course the best way to program these chips is with the Nordic SDK. This chip also has some basic Arduino support, some micropython support, and is well supported by MyNewt. Either way you go (SDK/micropython/Arduino) you'll still need to solder this onto a PCB and load code via a SWD programmer.

Technical Details

32-bit ARM® Cortex™ M4F CPU
Supply: 1.7V – 3.6V
Memory: 512KB Flash Memory
RAM: 64KB
Tx Power: 4 dBm @ 7.5mA, 0 dBm @ 5.3mA
Rx Sensitivity: -96 dBm @ 5.4mA
Flexible and configurable 32 GPIO (8 analog inputs)
Interfaces: UART / I2C / SPI / PWM / PDM / I2S / NFC
3 x Hardware SPI master ; 3 x Hardware SPI slave•2 x two-wire master ; 2 x two-wire slave• 1 x UART (CTS / RTS)• PDM for digital microphone• I2S for audio
12-bit / 200KSPS ADC
128-bit AES ECB / CCM / AAR co-processor
Low cost external crystal 32MHz ± 40ppm for Bluetooth ; ± 50ppm for ANT Plus
Low power 32MHz crystal and RC oscillators
Operating Temp: -40°C to 85°C
Raytac's product page

Product Dimensions: 16.0mm x 10.0mm x 2.2mm / 0.6" x 0.4" x 0.1"

Product Weight: 0.6g / 0.0oz
