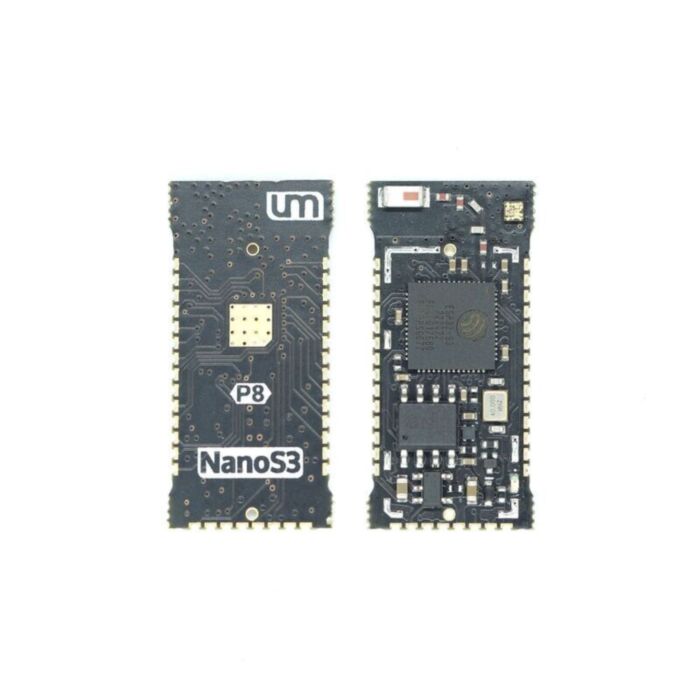

NanoS3 (Onboard Antenna)

SKU: CE09923 Brand: Unexpected Maker

Your very own NanoS3 with CircuitPython pre-installed

$31.86 AUD, inc GST

$28.96 AUD, exc GST

Available with a lead time
Expect dispatch between Dec 26 and Dec 30

Quantity Discounts:

10-25 $27.81 (exc GST)
25+ $26.94 (exc GST)

NANOS3 is the world’s smallest, fully-featured ESP32-S3 microcontroller module - just drop it on your PCB and focus on your features!

Features & Specifications

32Bit Dual Core 240MHz
2.4GHz Wifi - 802.11b/g/n
Bluetooth LE 5.0 + Mesh
8MB QSPI Flash
8MB Extra QSPI PSRAM
D+/D- pins for external USB connector
700mA 3.3V LDO Regulator
Low Power RGB LED

LiPo Battery Charging
27x GPIO broken out
USB Serial JTAG support
Optimised power path for low power battery usage
3D High Gain Antenna
1.27mm pitch castellated edges
Tiny size - just 28x11mm
Compatible with TinyPICO Nano

Ships with CircuitPython pre-installed!

The NanoS3 ships with the latest version of CircuitPython that supports the ESP32-S3. It also ships with the UF2 bootloader, so you can easily update your NanoS3 with the latest CircuitPython firmware, whenever you desire.

As newer versions of CircuitPython are released, you are able to update as you require from ciruitpython.org

Code any way you like!

There is also ESP-IDF and an early MicroPython port available as well. Visit the NanoS3 product page for more details.

Footprints

We have KiCAD 7 footprints available for the NanoS3 as well as a reference carrier PCB also in KiCAD. Check out the Github repository for more

Certification

NanoS3 ships uncertified. If you use a NanoS3 on a project that requires certification, you’ll be required to also certify the WiFi and Bluetooth radios as part of your final product.

Live in the EU?

If you are in the EU, you can also purchase NanoS3 from my Lectronz Store, where Duty/VAT is handled for you.
