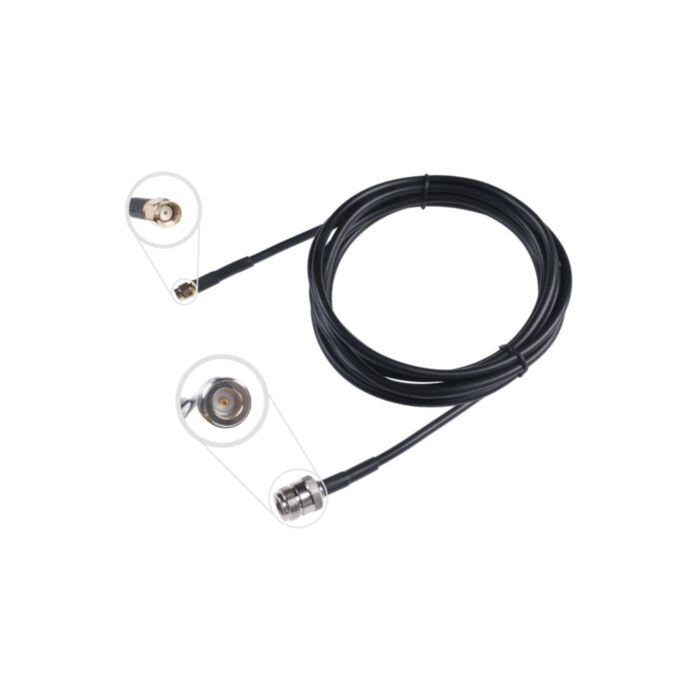

N Female to RP-SMA male connector RF Cable - CFD200 - 3m

SKU: SS114992663 Brand: Seeed Studio

N-type to SMARS Cable to connect LoRa Gateway to Fibreglass antenna and extend the coverage...

$17.55 AUD, inc GST

$15.95 AUD, exc GST

Quantity Discounts:

10+ $15.32 (exc GST)
25+ $14.84 (exc GST)

Out of Stock

Features

Extend the connection between a fiberglass antenna (with N-type male connector) and a Gateway(with RP-SMA Female connector)
Gold plated brass surface connector
Length: 3m
Waterproof
CFD200 Cable (same functionality and quality with LMR200)
Can be used with SenseCAP gateways series including SenseCAP M1

When setting up a LoRa Network the positioning of the Gateway and the Antenna may strongly influence the coverage. When you use a fiberglass antenna to further improve the coverage. This CFD200 cable with a 3m length could enable you to extend the distance between the device and the antenna therefore you could have more positioning flexibility. It is also waterproof and can withstand harsh outdoor environments.

Applications

SenseCAP gateways including SenseCAP M1;
LoRa-E5 Dev Kit and LoRa-E5 mini;
Other devices which have RP-SMA female antenna connectors and connect to N-type connector antennas;

Specification

Electric Characteristics

Frequency

DC~ 6 GHz

Impedance

50 Ohm

S.W.R.

<= 2.0

Insertion Loss

<= 1.5 dB @ 3 GHz

Voltage (breakdown)

> 500V

Insulation Resistance

>= 15 M ohm

Center Conductor Contact Resistance

<= 60 m ohm

Outer Conductor Contact Resistance

<= 25 m ohm

Material & Mechanical Characteristics

Material of Conductor Brass (Cu) Pull Test of N Connector

>= 5 Kg

Pull Test of RP-SMA Connector

>= 3 Kg

Mating Cycles

> 500

Environmental

Operation Temperature

-40°C~+65°C

Storage Temperature

-40°C~+80°C
