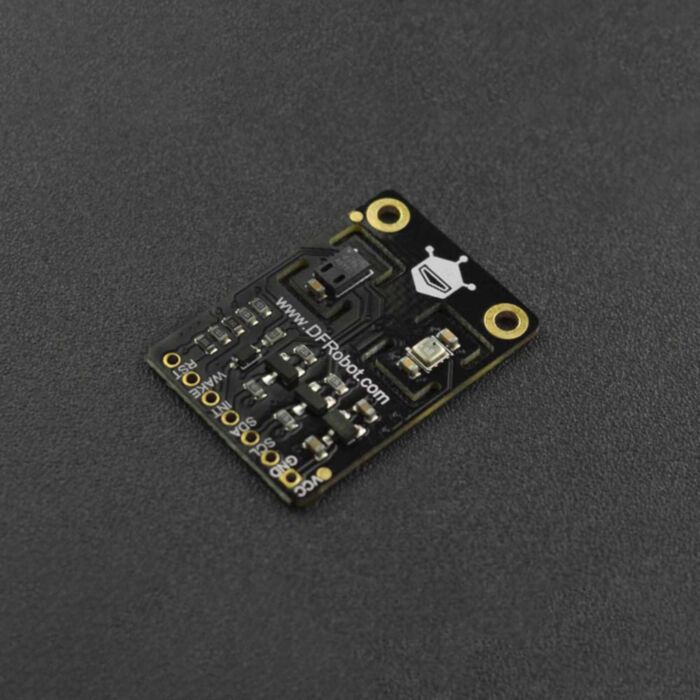

Multi-function Environmental Module - CCS811+BME280

SKU: SEN0335 Brand: DFRobot

Build up a simple environmental monitor station with this multi-function environment sensor! Based on the combination of CCS811+BME280 chip, this module features...

$53.50 AUD, inc GST

$48.64 AUD, exc GST

Available with a lead time
Expect dispatch between Jun 23 and Jun 27

Quantity Discounts:

6+ $46.69 (exc GST)
12+ $45.24 (exc GST)

Build up a simple environmental monitor station with this multi-function environment sensor! Based on the combination of CCS811+BME280 chip, this module features high accuracy, I2C interface, and fast Measurement. The BME280 can provide temperature and humidity compensation for CCS811 to improve the whole accuracy to a certain extent. It can be used to detect temperature, humidity, barometric pressure, altitude, TVOC, and eCO2.

CCS811 air quality sensor uses AMS's unique micro-hot plate technology. Compared with conventional gas sensors, it has lower power consumption, shorter preheating time, and smaller size. The internally integrated ADC and MCU allow it to collect and process data, and return via I2C.

BME280 is an environmental sensor that combines temperature sensor, humidity sensor, and barometer in one board. It has high precision, multiple functions, small size, etc. The sensor offers ±0.5°C temperature error and ±2%RH humidity error. It provides very stable performance within the detection temperature range. Besides, the offset temperature coefficient is ±1.5 Pa/K, equiv. to ±12.6 cm at 1 °C temperature change.

NOTE: The chip has stretched the clock in I2C. So, it may be not compatible with some controllers, such as Raspberry Pi.

Features

Short preheat time, low power consumption
Fast response
Highly integrated
Support for measuring multiple environmental data

Applications

Environment Monitor
Air Purifiers
Smart Home
Ventilation System
Weather Forecast

Specification

Operating Voltage: 3.3V~5.5 V
Working Current: <20mA
Dimension: 20*28mm/0.79*1.10”

CCS811 Parameter:

Preheat Time: <15s
I2C Address: 0x5A(in default)/0X5B
Operating Temperature Range: -40°C ~ 85°C
Operating Humidity Range: 10%RH~95%RH
eCO2 Measuring Range: 400ppm~8000ppm
TVOC Measuring Range: 0ppb~1100ppb

BME280 Parameter:

I2C Address: 0x76(in default)/0X77
Operating Temperature: -40°C ~ 85°C
Temperature Measuring Range: -40°C ~ +85°C, resolution of 0.1°C, deviation of ±0.5°C
Humidity Measuring Range: 0~100%RH, resolution of 0.1%RH, deviation of ±2%RH
Pressure Measuring Range: 300~1100hPa

Documents

Product wiki

Parts List

Multi-function Environmental Module - CCS811+BME280 x1
2.54-7P Black Single Row Pin x1
