Motoron M3S256 Triple Motor Controller Shield for Arduino (Connectors Soldered)

SKU: POLOLU-5030 Brand: Pololu

The Motoron M3S256 Triple Motor Controller Shield for Arduino makes it easy to control DC motors from an Arduino or Arduino-compatible board through an...

$76.85 AUD, inc GST

$69.86 AUD, exc GST

Available with a lead time
Expect dispatch between May 13 and May 16

Quantity Discounts:

6-12 $67.76 (exc GST)
12+ $66.37 (exc GST)

The Motoron M3S256 shield makes it easy to control up to three bidirectional, brushed DC motors with an Arduino or compatible board, such as the A-Star 32U4 Prime. It operates from 4.5 V to 48 V and can deliver continuous output currents up to 2 A per motor. Multiple Motoron controllers can be stacked on top of each other, allowing independent control of many motors. Unlike most of Pololu's motor drivers and motor driver shields, the Motoron does not require any PWM outputs or timers on your Arduino. Instead, the Arduino communicates with the Motoron using I²C, so only two I/O lines are needed regardless of how many Motorons you connect.

Three M3S256 versions are available to provide different options for the through-hole connectors:

For applications using a Raspberry Pi, consider the Motoron M3H256 instead (also available with different connector options).

Details for item #5030

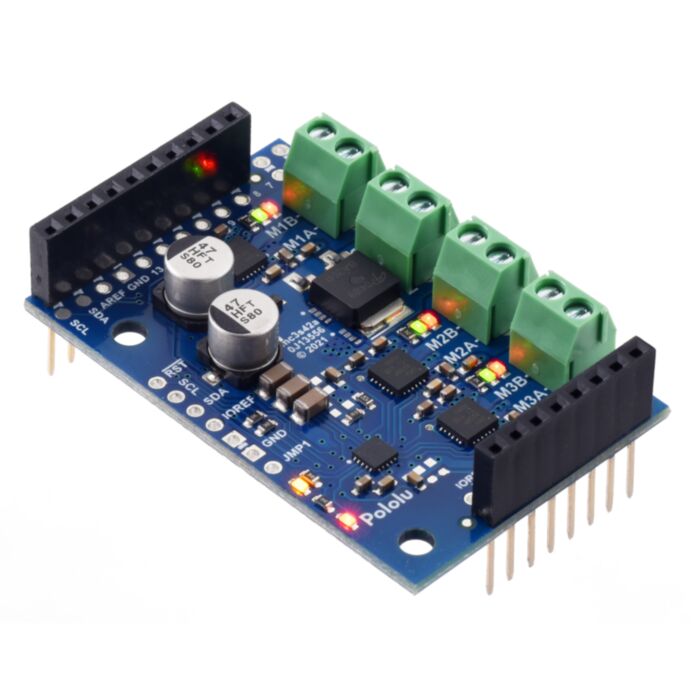

Motoron M3S256 Triple Motor Controller Shield for Arduino (Connectors Soldered).

Motoron M3S256 shield being controlled by an Arduino Uno.

Three Motoron M3S256 shields being controlled by an Arduino Uno.

This version of the Motoron M3S256 ships with soldered stackable headers and terminal blocks.

Motoron M3S256 Triple Motor Controller Shield pinout.

Features and specifications

Three motor control channels allow for independent control of up to three bidirectional brushed DC motors per Motoron
Wide operating voltage range: 4.5 V to 48 V
Maximum output current per motor: 2.0 A continuous, 6.4 A peak for <1 second
Reverse-voltage protection on motor power supply (down to -40 V)
Logic voltage range: 2.8 V to 5.5 V
Control interface: I²C
I²C clock speed: up to 400 kHz
Optional cyclic redundancy checking (CRC)
Configurable motion parameters:
- Max acceleration/deceleration forward/reverse
- Starting speed forward/reverse
- Direction change delay forward/reverse
PWM frequency: eight options available from 1 kHz to 80 kHz
Command timeout feature stops motors if the Arduino stops functioning
Configurable automatic error response
Motor power supply (VIN) voltage measurement
Optional pins make it easy to power the Arduino from reverse-protected motor power, either directly or through an external regulator (not included)
Two status LEDs
Motor direction indicator LEDs
Motoron Arduino library simplifies getting started using the Motoron with an Arduino or compatible controller
Comprehensive user’s guide

Dimensions

Size:	1.3" × 2.02"
Weight:	13 g

General specifications

Channels:	3
Model:	Motoron M3S256
Control interface:	I²C
Minimum operating voltage:	4.5 V
Maximum operating voltage:	48 V¹
Continuous output current per channel:	2.0 A
Peak output current per channel:	6.4 A
Reverse voltage protection?:	Y²
Connectors soldered?:	Y

Identifying markings

PCB dev codes:	mc3s42a
Other PCB markings:	0J13556

Notes:

1: Not recommended for use with 48V batteries.
2: Note: Reverse voltage protection only works up to 40 V.

Documentation and other information

Pololu Motoron Motor Controller User’s Guide (Printable PDF)

User’s manual for the Pololu Motoron Motor Controllers.

File downloads

Dimension diagram of the Motoron M3S256 Triple Motor Controller Shield for Arduino (332k pdf)
3D model of the Motoron M3S256 Triple Motor Controller Shield for Arduino (12MB step)
Drill guide for the Motoron M3S256 Triple Motor Controller Shield for Arduino (83k dxf)

This DXF drawing shows the locations of all of the board’s holes.

Recommended links

Motoron Motor Controller library for Arduino
