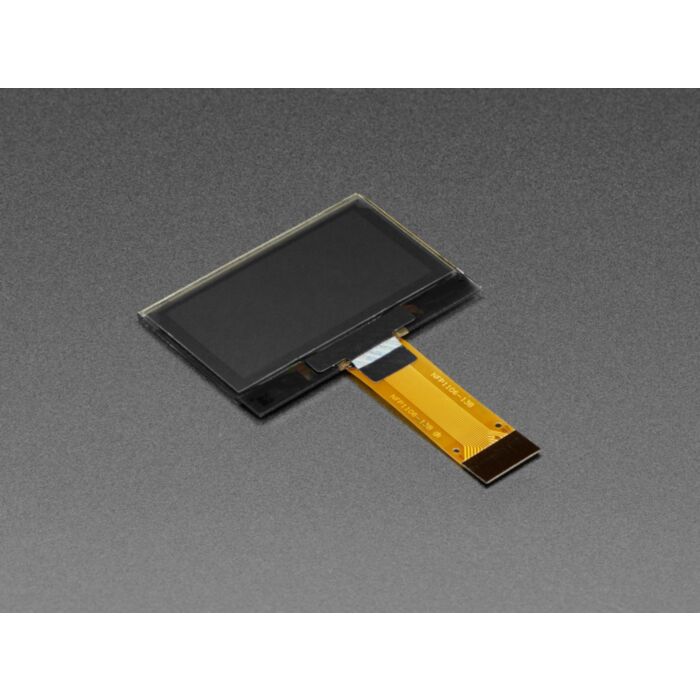

Monochrome 1.3" 128x64 SH1106G SPI OLED Monochrome Display

SKU: ADA5228 Brand: Adafruit

This is a screen for advanced hackers who like the look of the OLED screen we've put into the Adafruit MACROPAD RP2040. This is just the raw...

$13.70 AUD, inc GST

$12.45 AUD, exc GST

Available with a lead time
Expect dispatch between May 06 and May 08

Quantity Discounts:

10-25 $11.95 (exc GST)
25+ $11.58 (exc GST)

This is a screen for advanced hackers who like the look of the OLED screen Adafruit have put into the Adafruit MACROPAD RP2040.

This is just the raw display module - no PCB or supporting circuitry is included! You'll need to add a 12V boost converter and other components to make it work. Check out the MACROPAD PCB files for a place to start.

Adafruit are selling this module bare for those who want to integrate it into their own project or repair a broken MACROPAD. If you just want to quickly add a monochrome 128x64 OLED to your project, we suggest Adafruit's breakout board or Raspberry Pi Bonnet featuring a very-similar-OLED with SSD1306 chipsets. Both makes it easy to use SPI interfacing and also has mounting holes, level shifting, etc.

For software interfacing, you'll need an SH1106G driver, Adafruit have written both Arduino and CircuitPython drivers you can use.

For the matching connector, you'll need a 16-pin 0.5mm pitch FPC flip-lock connector.

Technical Details

Datasheet
