mmWave - C4001 24GHz Human Presence Detection Sensor (25 Meters, UART)

SKU: SEN0609 Brand: DFRobot
The 25-meter millimeter-wave presence sensor is designed for human detection. Features long-distance range, speed measurement, proximity detection, and a...
$23.50 AUD, inc GST
$21.36 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 31st of Dec

Quantity Discounts:

  • 10-25 $20.73 (exc GST)
  • 25+ $20.29 (exc GST)

Restrictions apply to this RF Equipment for use in Australia:

  • Only to be operated on 433Mhz / 915-930Mhz / 2.4Ghz  (check the product description for compatible frequency ranges).
  • If operating outside of shared frequencies or in such a way that is beyond low interference potential devices are intended to function, then you have obtained the appropriate authorisation to do so.

For use in other locations around the world:

  • Follow region-specific frequency spectrum rules.

A declaration of use will need to be submitted during checkout.

- +

5 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

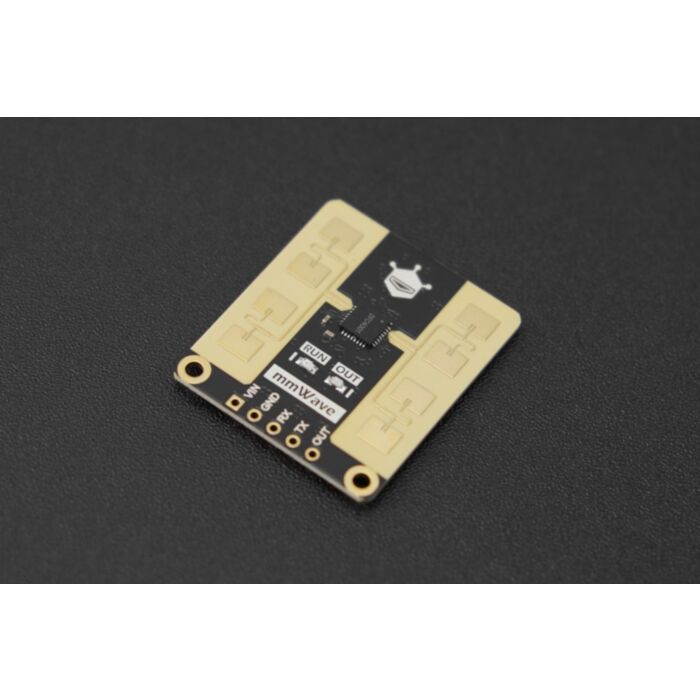

The C4001 millimeter-wave presence sensor utilizes a wavelength signal of 24GHz. It has a detection range of 100° horizontally, with a presence detection range of 16 meters and a motion detection and distance measurement range of 25 meters.It is suitable for human presence detection, environmental monitoring, and real-time monitoring projects.

Human detection

Compared to other types of presence sensors such as infrared sensors and ultrasonic sensors, the C4001(25m) millimeter-wave presence sensor has the advantage of being able to detect both static and moving objects. It also has a relatively strong anti-interference ability, making it less susceptible to factors such as temperature changes, variations in ambient light, and environmental noise. Whether a person is sitting, sleeping, or in motion, the sensor can quickly and sensitively detect their presence.

The differences between millimeter-wave presence sensor and infrared sensor

Distance and velocity detection

The C4001 (25m) millimeter-wave presence sensor utilizes Frequency Modulated Continuous Wave (FMCW) modulation for distance and speed measurement. It has a maximum measurement range of 25 meters for distance and a speed measurement range of 0.1 to 10 meters per second.

FMCW is a radar system based on Frequency Modulated Continuous Wave. Unlike traditional pulse radar, FMCW radar continuously emits a series of continuous wave signals with gradually changing frequencies while simultaneously receiving the reflected signals. By analyzing the received signals, measurements of parameters such as distance, velocity, and angle can be achieved.

Compared to traditional pulse radar technology, FMCW radar can continuously measure the distance of objects. By utilizing the Doppler effect, it can also obtain velocity information of the target objects. This makes it suitable for applications that require monitoring the motion status of target objects. Additionally, FMCW radar can achieve continuous frequency scanning, providing higher measurement resolution. Since it doesn't need to wait for the echo signal to return, it is suitable for applications that require real-time monitoring and tracking of target objects.

Detection Range of millimeter-wave human body sensor

Detection Range of millimeter-wave human body sensor

What is a millimeter-wave radar sensor?

Millimeter-wave radar technology is a non-contact sensing technology used to detect objects and provide information about their distance, velocity, and angle (in the case of humans, for example). The signals emitted by millimeter-wave sensors fall within the high-frequency spectrum with wavelengths between 24GHz and 300 GHz, also known as the millimeter (mm) range.

Installation Method

The millimeter-wave human body sensor is sensitive to the installation method, and improper installation can affect the performance and functionality of the sensor. The commonly used installation methods for this module include top installation, bottom installation, horizontal installation, and downward tilted installation.

Top Installation Diagram of millimeter-wave human body sensor

Bottom Installation of millimeter-wave human body sensor

Horizontal Installation of millimeter-wave human body sensor

Wiring diagram of millimeter-wave human body sensor and Arduino Uno

Features

  • Human detection: Detection range up to 16 meters and motion detection range up to 25 meters.
  • Distance detection: Range from 1.2 meters to 25 meters.
  • Velocity detection: Range from 0.1 meters per second to 10 meters per second.
  • Strong anti-interference capability, unaffected by snow, haze, temperature, humidity, dust, light, noise, etc.
  • High and low-level output control through I/O ports.
  • Input and output control via serial port.
  • Small size, easy to integrate.
  • Applications

  • Human Detection
  • Distance and Velocity Detection
  • Environmental Monitoring
  • Industrial Automation
  • Real-time Monitoring and Tracking
  • Specification

  • Operating voltage: 3.3/5V
  • Maximum detection range: 25m
  • Beam angle: 100*40°
  • Modulation mode: FMCW
  • Operating frequency: 24GHz
  • Operating temperature: -40°C ~ 85°C
  • Baud rate: 9600
  • Size: 26*30mm
  • Documents

  • Product wiki
  • Communication Protocol
  • Dimensional Drawing
  • Parts List

  • C4001 mmWave Presence Sensor 25m× 1
  • 5-pin header
