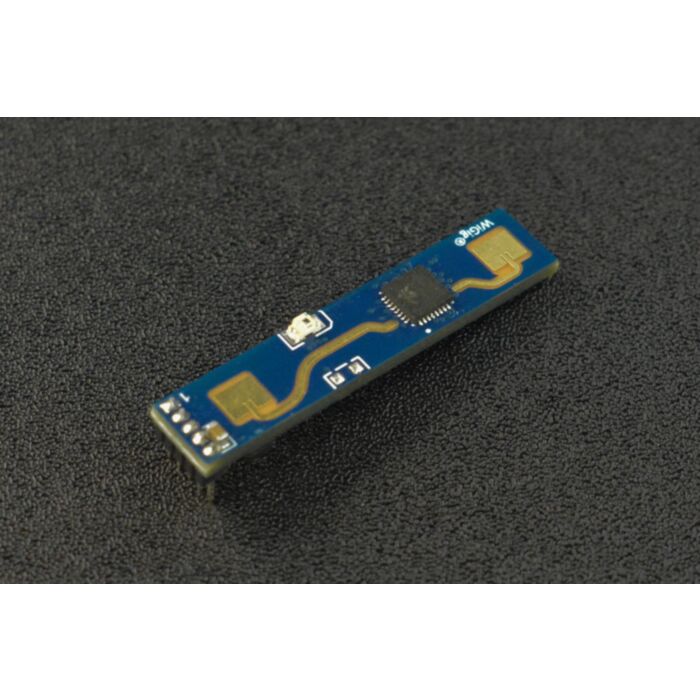

mmWave - 24GHz Human Presence Sensing Module (6 Meters)

SKU: SEN0557 Brand: DFRobot

This high-sensitivity 24GHz human presence sensing radar module utilizes FMCW (frequency-modulated continuous wave) to detect human targets in the set...

$16.60 AUD, inc GST

$15.09 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Fastest delivery: Tomorrow* Disclaimer:
The shipping address needs to be in the AusPost next day network and eParcel Express is chosen during checkout. On rare occasions, orders may be delayed by up to one business day due to AusPost pickup timings or for order verifications.

Quantity Discounts:

10-25 $14.49 (exc GST)
25+ $14.04 (exc GST)

This high-sensitivity 24GHz human presence sensing radar module utilizes FMCW (frequency-modulated continuous wave) to detect human targets in the set space. Combined with radar signal processing and accurate human sensing algorithm, it can achieve high-sensitivity sensing of human presence status, which can identify human body in motion and stationary state and calculate auxiliary information like the distance to the target.

The sensing effect of the radar module is insusceptible to environmental factors like temperature, brightness, humidity, light fluctuations, etc. Besides, FMCW radars can penetrate materials, which enables this module to work well in a shell without opening holes.

This microwave radar is mainly used in indoor scenarios to sense whether there is a moving or micro-moving human in the detection area and output the detection results in real time. It offers a sensing distance of up to 6 meters and a resolution of 0.75m. Besides, it provides serial communication protocol so users can configure the sensing distance range, sensing sensitivity in different intervals, and delay time for different applications.

The module supports UART and GPIO (high and low level) output. When used with Arduino or other controllers, it can be flexibly applied to various projects such as smart light control, human body induction wake-up of advertising screen, UV light control, and home security.

24GHz Human Presence Sensing Module

Features

5-12V wide supply voltage
High sensitivity, wide detection angle of 120°
Sensing distance up to 6m, capable of outputting distance value
Long and narrow shape with a width of 7mm, small in size, and easy to embed
Support UART & GPIO (high/low level) output

Applications

Smart light control
Human body induction wake-up of advertising screen
UV light control
Home security

Specification

Operating Frequency Range: 24GHz-24.25GHz
Modulation Mode: FMCW
Operating Voltage: DC 5V-12V
Average Operating Current: 80mA
Detection Distance: 0.75m-6m (Measured blind zone distance: 30cm)
Detection Angle: ±60°
Interface: UART & GPIO (3.3V I/O level)
Default Baud Rate: 256000
Distance Resolution: 0.75m
Sweep Bandwidth: 250MHz
Ambient Temperature: -40 to 85°C
Dimension: 7mm×35mm/0.28×1.38"
Connector: SH 1.27mm to DuPont 2.54

Documents

Product wiki

Parts List

24GHz Human Presence Sensing Module ×1
Connector ×1

This product is listed in:

Sensors>Biometric
