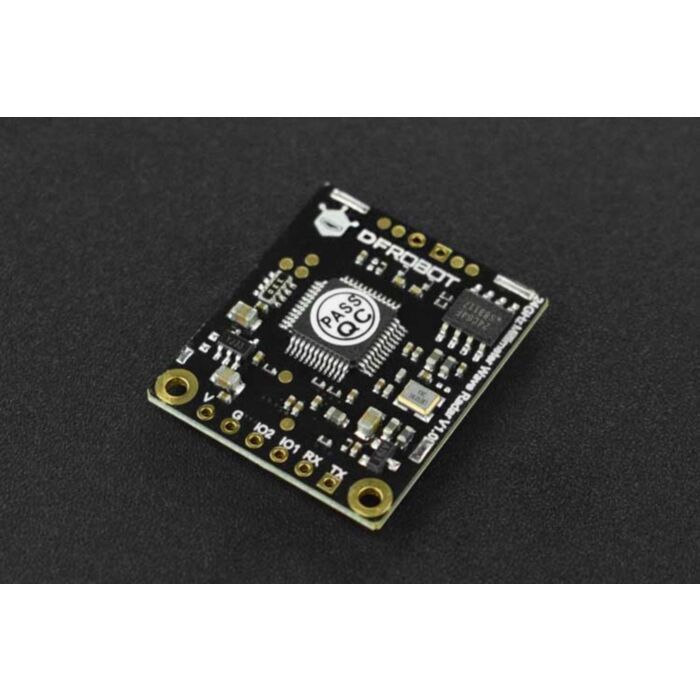

mmWave Radar - Human Presence Detection

This 24GHz millimeter-wave radar sensor employs FMCW, CW multi-mode modulation, and separate transmitter and receiver antenna structure. In working, the sensor first...

$47.90 AUD, inc GST

$43.55 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Fri, 15th of Nov

Quantity Discounts:

10-25 $41.80 (exc GST)
25+ $40.50 (exc GST)

Restrictions apply to this RF Equipment for use in Australia:

Only to be operated on 433Mhz / 915-930Mhz / 2.4Ghz (check the product description for compatible frequency ranges).
If operating outside of shared frequencies or in such a way that is beyond low interference potential devices are intended to function, then you have obtained the appropriate authorisation to do so.

For use in other locations around the world:

Follow region-specific frequency spectrum rules.

A declaration of use will need to be submitted during checkout.

This 24GHz millimeter-wave radar sensor employs FMCW, CW multi-mode modulation, and separate transmitter and receiver antenna structure.

In working, the sensor first emits FMCW and CW radio waves to the sensing area. Next, the radio waves, reflected by all targets which are in moving, micro-moving, or extremely weak moving state in the area, are converted into electrical signals by the millimeter-wave MMIC circuit in the sensor system. After that, these signals will be sent to the processor and processed through the related signal and data algorithms. Then, the target information can be solved out.

The millimeter-wave radar can sense the human presence, stationary and moving people within the detection area. Moreover, it can even detect static or stationary human presence such as a sleeping person. There are two ways provided to output detection result: serial port and I/O port switch quantity. Besides that, the sensor module features strong sensing reliability, high sensitivity, small size, easy to be used or embedded in applications.

Connect Diagram

Features

Human presence sensing: sense if there is human body in areas.
I/O port switch quantity input and output control
Serial port input and output control
Strong anti-interference ability, not to be affected by snow, haze, temperature, humidity, dust, light, noise, etc.

Specification

Power Supply: 3.6~5V
Operating Current: 90mA
Detection Distance: 9m
Equivalent Transmit Power: 13-15dBM
Beam Angle: 100*40°
Modulation Mode: FMCW, CW
Operating Frequency: 24GHz
Operating Temperature Range: -40°C ~ 85°C
Baud Rate: 9600
Dimension: 24*28mm/0.94*1.10"

Documents

Shipping List

mmWave Radar - Human Presence Detection ×1
