MiniQ Robot chassis Encoder

SKU: SEN0116

$7.69 AUD, inc GST

More Views

MiniQ Robot chassis Encoder
7.69 AUD

SKU: SEN0116

$7.69 AUD, inc GST
Ships today (delivered by Thu, 23rd of Feb)
Shipping Offer

Introduction

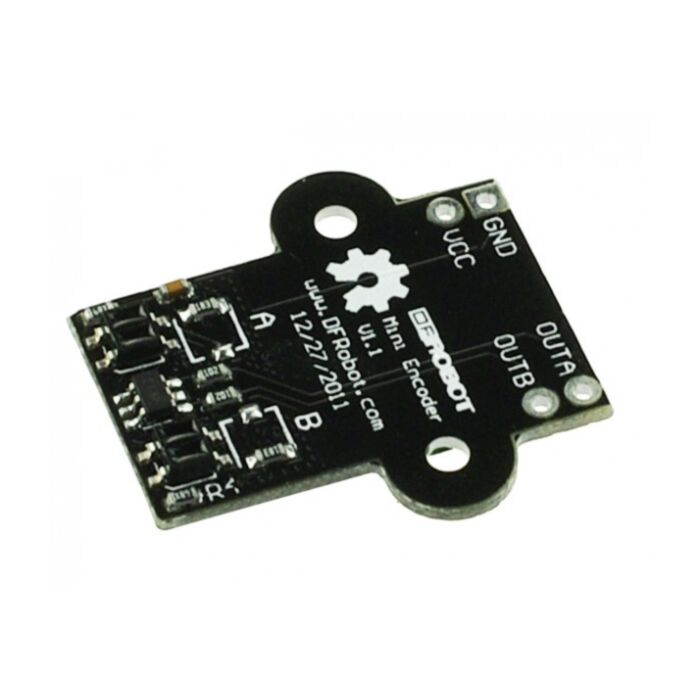

This encoder is matched with 2wd miniQ Robot chassis. AB two-phase pulse wave,measured by two infrared reflective sensor. These two sensor pulse waveform is close to a phase difference of 90 degrees, through the AB two-phase lead and lag of the waveform judged wheel forward rotation or the reverse.
You can install it on the motor bracket or mini robot chassis to do the PID and position control.

Note: Please short current R4 when working in 3.3V

Specification
  • Working Voltage:3.3V or 5V
  • Working Current:<14mA @5V
  • Pulse Output:12 per revolution
  • Compatibility:42mm x 19mm wheel
Shipping List
  • Mini Robot chassis Encoder     (1 unit)
  • 4 Pin Headers                  (1 unit)
