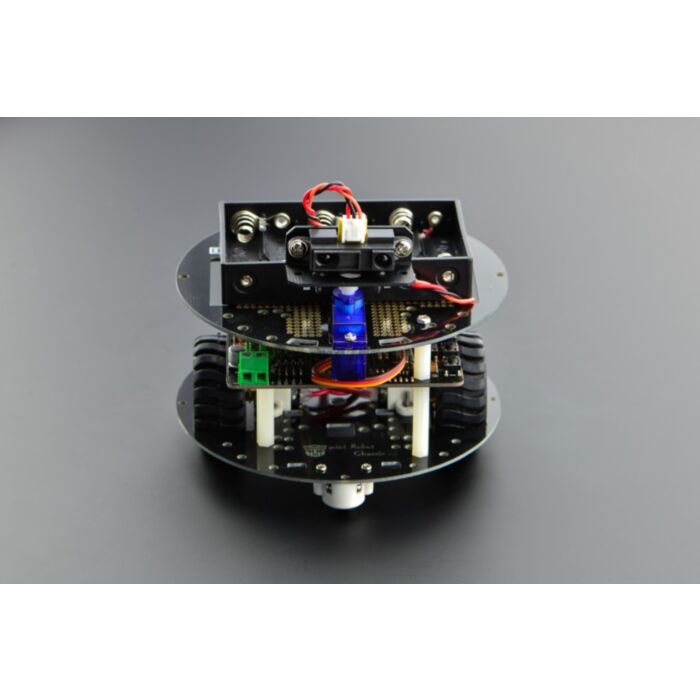

MiniQ Discovery Kit

SKU: KIT0071 Brand: DFRobot

Explore the physical world with MiniQ robot! This is a MinQ 2WD Plus which is based on our MiniQ 2WD Chasis. To make it suitable for educational, competions and fun to play with, we also added extra modules such as Romeo V2 All-in-onecontroller, Sharp GP2Y0A21 Distance Sensor and 9g micro servo into this kit. What makes it different from the original miniQ robots is that it comes with an upper deck, which allow you to install sensors, servos and even do some prototypings. The leaf pads on the surface make it an ideal on-the-go prototyping board, and it is stackable. You can not only solder DIP components but also solder SMD components with this upper deck. Whatsmore, we have soldered motor wires and glued for you in advance. With this kit you'll be able to play immediately after simple assembling and programming. Our sample codes include many interesting senarios such as obstacle avoidance, enjoy!

$139.95 AUD, inc GST

$127.23 AUD, exc GST

Quantity Discounts:

6+ $120.86 (exc GST)
12+ $115.77 (exc GST)

Out of Stock

What is Romeo V2?

RoMeo V2[R3] is an All-in-One Arduino compatible microcontroller designed for robotics applications. The Romeo benefits from the Arduino open source platform, it is supported by thousands of open source codes, and can easily be expanded with Arduino Shields. The integrated 2 way DC motor driver and Xbee socket allows you to start your project immediatly without the need for an additional motor driver or wirless shield.

Specification

Sharp GP2Y0A21 Distance Sensor

operating voltage: 4.5 V to 5.5 V
average current consumption: 30 mA (typical)
distance measuring range: 10 cm to 80 cm (4" to 32")
output type: analog voltage
output voltage differential over distance range: 1.9 V (typical)
response time: 38 ± 10 ms

Others

13000 rpm @ No load
50:1 Gear ratio
260 rpm @ 6V
40mA @ 6V
360mA stall current @ 6V
10 oz inches torque @ 6V

Documents

Parts List

Romeo V2 x1
9g micro servo (1.6kg) x1
Sharp GP2Y0A21 Distance Sensor (10-80cm) x1
Sharp IR Sensor Mounting Bracket x1
6xAA battery holder x1
2wd miniQ Robot chassis x1
Upper Deck for MiniQ x1
M3 * 30 nylon standoffs x5
M3 * 20 nylon standoffs x4
M3 * 10 nylon standoffs x4
M3 nuts
M3*6 screws
M2*6 screws
M2 nuts
M3*7*1 Black nylon gaskets
