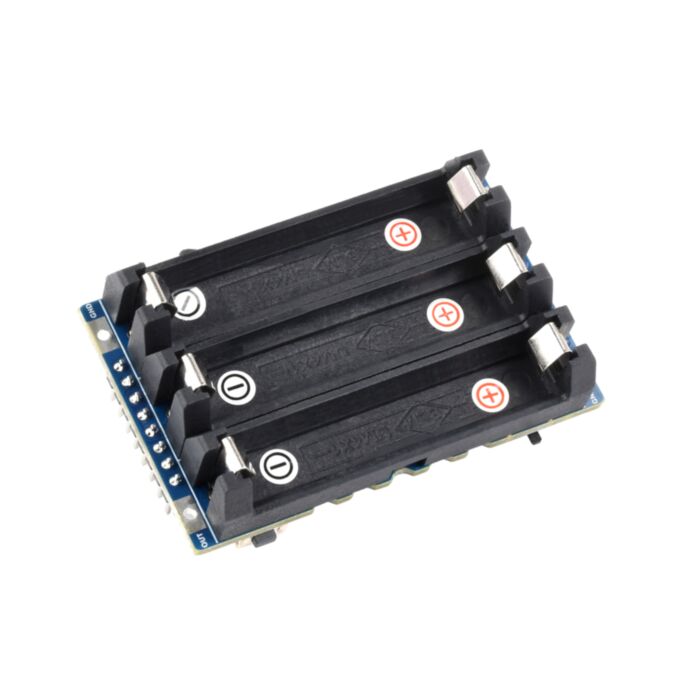

Mini Uninterruptible Power Supply module

SKU: WS-24760 Brand: Waveshare

Mini Uninterruptible Power Supply module, Supports charging And Power output at the same time, 5V 2.5A Output...

$30.45 AUD, inc GST

$27.68 AUD, exc GST

Available with a lead time
Expect dispatch between May 15 and May 20

Quantity Discounts:

10-25 $26.85 (exc GST)
25+ $26.30 (exc GST)

Mini Uninterruptible Power Supply module, Supports charging And Power output at the same time, 5V 2.5A Output

Features

Mini UPS expansion board for easy soldering or integration into mobile robots and industrial control equipments
I2C bus communication, monitoring the batteries voltage, current, power, and remaining capacity in real time
Onboard multiple function pins, provides two charging and discharging methods via pads and pin headers
Multiple battery protection circuits: over charge/discharge protection, over current protection, short circuit protection, and reverse protection, along with the equalizing charge feature, more safe and stable
Onboard 5V regulator, up to 2.5A continuous output current
Onboard warning indicators, easy to check if the battery is connected correctly and charging status
Comes with online development resources and manual

Specifications

Output voltage	5V 2.5A
Charger	Support 5V 3A
Control bus	I2C
Battery support	10440 Lithium battery × 3 (in parallel, NOT included)
Dimensions	61 × 38mm

Uninterruptible Power

It is able to charge the batteries and provide power output at the same time from external power supply.

Automatically switch over to batteries output if external power supply is unavailable, keeps the system running without any trouble.

Monitoring the batteries voltage, current, power, and remaining capacity via I2C interface

What's On Board

ETA1188 5V voltage regulator
ETA6953 Battery charge/discharge chip
INA219 Voltage/current monitoring chip
S8261 Battery protection chip
RT9193 3.3V voltage regulator
AO4402 Battery protection MOS tube
UPS ON/OFF switch Control UPS output
Boot button Batteries activation
Power indicator Lights up when the UPS switch is turned on
Charge indicatorLight up: when batteries are chargingBlinking: when batteries are abnormal or no battery connectedLight off: when charging completed or not charging
Reverse warning indicators will light up if the related battery is reversely connected
Charging pad 5V 3A
UPS output pad 5V 2.5A
Multi-functional pin headers

Pinout

IN	Power input (5V 3A)
OUT	UPS output (5V 2.5A)
GND	ground
UPS OFF	turn off UPS power output when connected to PWR pin
BOOT	Batteries activation (pull low for 500ms and then pull high)
CHARGE	Charge indication (low level indicates charging)
SCL	I2C clock
SDA	I2C data
PWR	UPS ON/OFF (turn off UPS power output when connected to UPS OFF pin)

Note: When using pin headers for charging and discharging, it is recommended to connect all input and output pins for 2.5A output current to reduce pin stress

Dimensions

Resources

Wiki for UPS Module

SAFETY CAUTIONS

Li-ion and Li-po batteries are quite unstable. They may cause fire, personal injury, or property damage, if they're not properly recharged or used.
Do not reversely connect the polarities when recharging or discharging the battery. Do not use inferior charger/charging panel to recharge the battery.
Do not mix use old batteries with new ones, avoid using batteries of different brands.
When buying Lithium battery, should always make sure the battery specification is compatible with the expansion board. Choose batteries from formal manufacturer, and ensure the batteries will work stably and safely by aging test.
Lithium batteries have limited cycle life, they will also deteriorate as time goes by. Should be replaced with new ones when the batteries reaching their max cycle life, or working over two years, whichever comes first.
Should be placed carefully and properly, keep it away from inflammables and explosives articles, away from children, avoid any safety accident caused by careless storage.

Shipping List

UPS Module Mini x1
